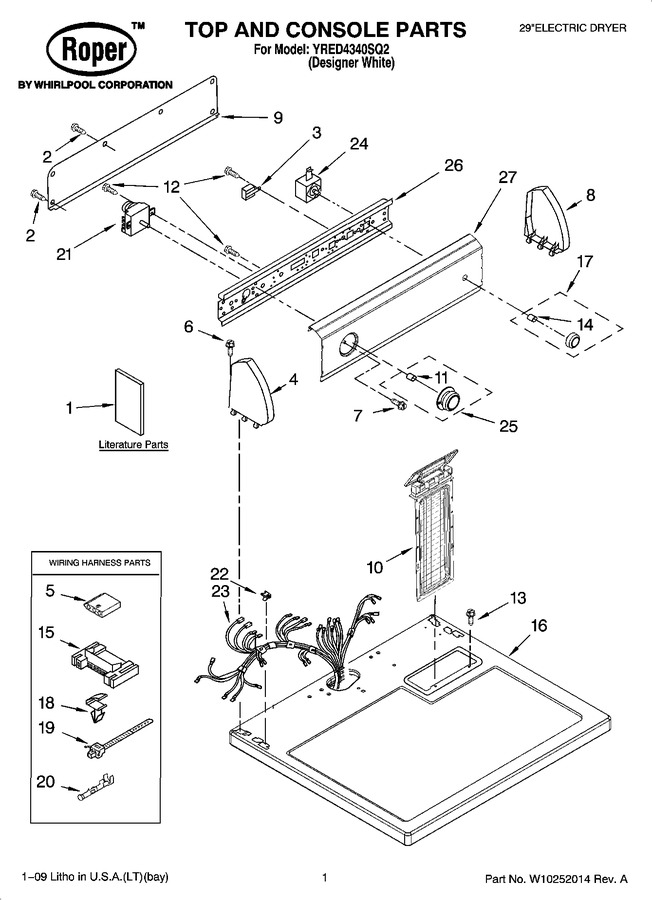

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8535831		Instructions, Installation		Appelez-nous	-
1	W10151576		Guide, Use & Care		Appelez-nous	-
1	677818		Dryer		Appelez-nous	-
1	W10043010		Sheet, Cycle Feature		Appelez-nous	-
1	W10185980		Wiring Diagram		Appelez-nous	-
2	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
3	WP694419		Mini Buzzer   (Replaces: 694419)				$ 120.65
4	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 78.81
5	3936144		Connector				$ 19.10
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.36
7	3400859		Screw, Grounding   (Replaces: 8533951)				$ 12.49
8	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 78.81
9	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 121.78
10	W10874409		Screen, Lint   (Replaces: 8558467)			Immediately	$ 60.31
11	WP688805		Spring Clip, Knob   (Replaces: 688805)			Immediately	$ 7.38
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.43
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
15	3395683		Connector (motor)			Immediately	$ 49.01
16	8557930		Top		Appelez-nous	-
17	8538959		Knob, Push-to-start				$ 25.38
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.36
19	3391249		Tie, Cable		Appelez-nous	-
20	WP94614		Terminal   (Replaces: 94614)				$ 7.25
21	WPW10185972		Timer, 60 Hz.   (Replaces: W10185972)			Immediately	$ 127.67
22	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 6.98
23	W10186164		Harness, Wiring		Appelez-nous	-
24	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 23.99
25	WP8557455		Timer Knob Assembly   (Replaces: 8538953)				$ 53.65
26	8271418		Bracket, Control				$ 57.15
27	8579655		Panel, Control		Appelez-nous	-
