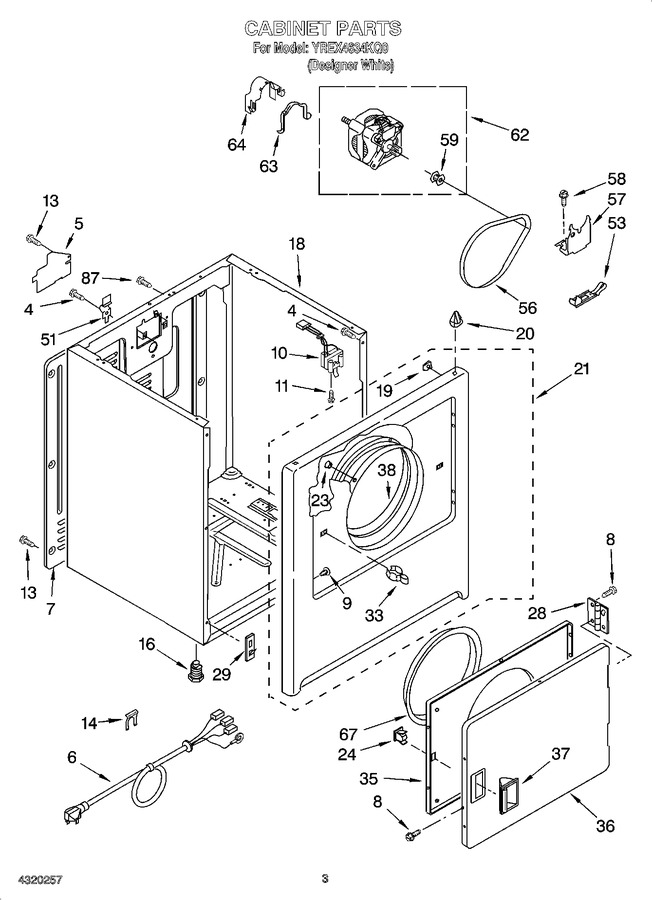

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 5 | 3394202 | Cover, Terminal Block |
|
$ 8.24 | |||||
| 6 | W11095079 | Cord, Power (Replaces: 3394208) |
|
Immediately | $ 124.42 | ||||
| 7 | 3396807 | Panel, Rear |
|
- | |||||
| 8 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 7.30 | |||||
| 9 | WP3404413 | Plug, Hinge Hole (4) (Replaces: 3404413) |
|
Immediately | $ 7.52 | ||||
| 10 | WP3406105 | Door Switch Assembly (Replaces: 3406104) |
|
Immediately | $ 33.21 | ||||
| 11 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.71 | |||||
| 13 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 14 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 6.99 | ||||
| 16 | 49621 | Foot, Dryer (4) (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 18 | 3399580 | Cabinet Assembly (includes Illus. Nos. 5, 7, 16, 29 & 57) |
|
- | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.76 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 11.98 | ||||
| 21 | 3403571 | Front Panel Assembly |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 21.20 | |||||
| 24 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 28 | WPW10362431 | Hinge And Pin Assembly (2) (Replaces: 3405514) |
|
Immediately | $ 7.45 | ||||
| 29 | W10854425 | Clip, Front Panel (2) (Replaces: 3394083) |
|
Immediately | $ 14.71 | ||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 35 | 3403371 | Door, Rear |
|
$ 77.01 | |||||
| 36 | WP3403361 | Door, Front (Replaces: 3403361) |
|
$ 171.48 | |||||
| 37 | WP3405184 | Handle, Door (Replaces: 3405184) |
|
$ 71.83 | |||||
| 38 | 279264 | Seal & Bearing Assembly (Replaces: 349464) |
|
Immediately | $ 76.91 | ||||
| 51 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.39 | |||||
| 53 | WP691366 | Idler & Slide Assembly (Replaces: 3394332) |
|
Immediately | $ 20.22 | ||||
| 56 | 341241 | Belt, Drive (Replaces: 8066065) |
|
Immediately | $ 16.34 | ||||
| 57 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 114.89 | ||||
| 58 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 12.64 | ||||
| 59 | WP8066184 | Pulley, 60 Hz. (Replaces: 3394341) |
|
Immediately | $ 45.92 | ||||
| 62 | 279827 | Motor Assembly 60 Hz. (Replaces: 3976707) |
|
Immediately | $ 195.48 | ||||
| 63 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.40 | |||||
| 64 | WP3404162 | Clamp, Motor (w/shield) (Replaces: 3404162) |
|
Immediately | $ 7.39 | ||||
| 67 | W10861521 | Seal, Door (Replaces: 3405245) |
|
Immediately | $ 61.07 | ||||
| 87 | W10850756 | Screw, 10-32 X 5/8 (external Ground) (Replaces: 697776) |
|
$ 7.38 |
