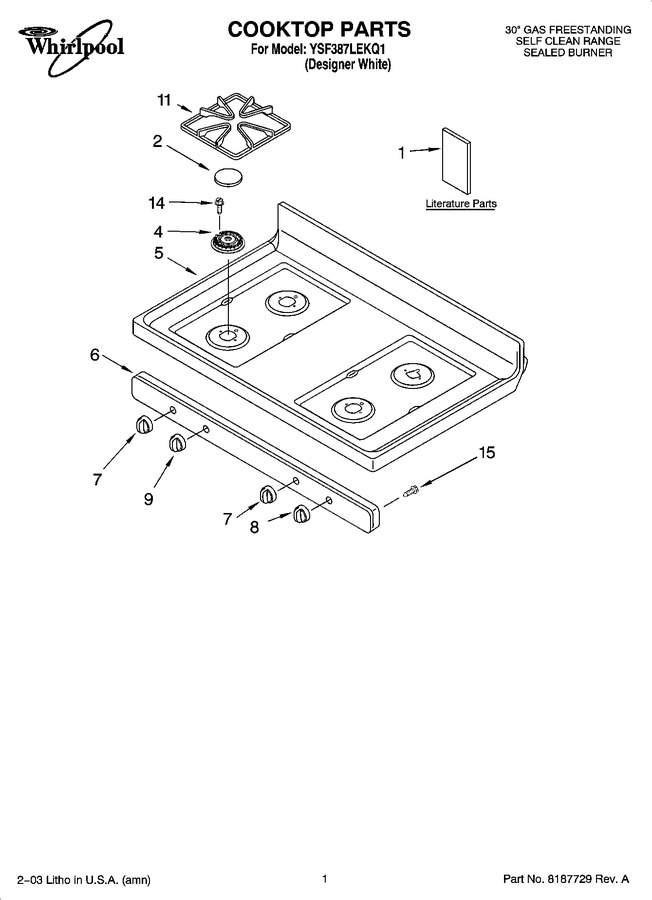

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8054032 | Literature Parts (instruct, Install) |
|
- | |||||
| 1 | LIT8523153 | Literature Parts (tech Sheet) |
|
- | |||||
| 1 | LIT8523779 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8523048 | Literature Parts (installation Instructions (w/span) (template)) |
|
- | |||||
| 1 | LIT8523019 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 2 | WP3191905 | Cap, Burner Lf (grey) (Replaces: 3191905) |
|
$ 81.88 | |||||
| 2 | 3191899 | Cap, Burner (rr) (grey) |
|
$ 31.21 | |||||
| 2 | WP3191903 | Cap, Burner (lr - Rf) (grey) (Replaces: 3191903) |
|
$ 172.35 | |||||
| 4 | WP4455981 | Burner (lf (12k)) (Replaces: 4455981) |
|
Immediately | $ 82.71 | ||||
| 4 | WP4455980 | Burner (lr - Rf (9k)) (Replaces: 4455980) |
|
$ 58.69 | |||||
| 4 | 4455979 | Burner (rr-6k) |
|
$ 28.52 | |||||
| 5 | 8272251 | Cooktop |
|
- | |||||
| 6 | WP8523854 | Panel, Manifold (Replaces: 8273025) |
|
$ 261.52 | |||||
| 7 | WP8273104 | Knob, Control (Replaces: 8273104) |
|
Immediately | $ 16.19 | ||||
| 8 | WP8273104 | Knob, Accusimmer (Replaces: 8273108) |
|
Immediately | $ 16.19 | ||||
| 9 | WP8273104 | Knob, Powerburner (Replaces: 8273112) |
|
Immediately | $ 16.19 | ||||
| 11 | WPW10447925 | Grate, Burner (4) (grey) (Replaces: 8522850) |
|
Immediately | $ 269.60 | ||||
| 14 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 7.70 | ||||
| 15 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.16 |
