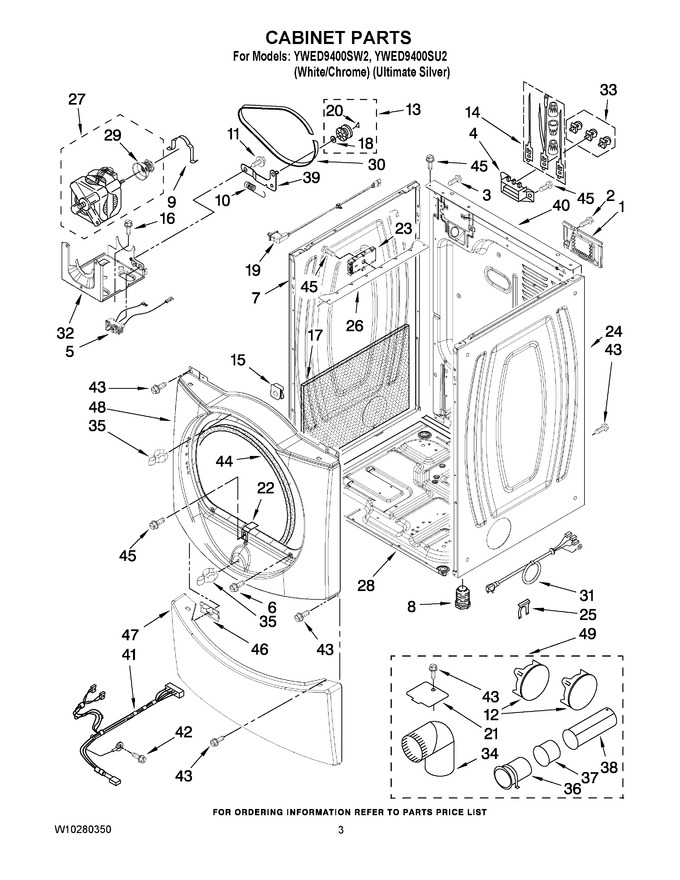

02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10119283 | Cover, Terminal Block (Replaces: 8576583) |
|
$ 121.29 | |||||
| 2 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 7.43 | ||||
| 3 | W10850756 | Screw, 10-32 X 5/8 (ground) (Replaces: 8533974) |
|
$ 7.38 | |||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 5 | WPW10411937 | Switch, Broken (belt) (Replaces: W10246525) |
|
Immediately | $ 32.45 | ||||
| 6 | WP308685 | Screw,10-16 X 1/2 (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 7 | W10192440 | Panel, Side (l.h.) (silver) |
|
$ 145.28 | |||||
| 7 | W11233548 | Panel, Side (l.h.) (white) (Replaces: W10192435) |
|
$ 235.20 | |||||
| 8 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 8 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 7.70 | ||||
| 9 | WPW10121316 | Clamp, Motor (2) (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 10 | WPW10446781 | Spring, Idler (Replaces: 3387374) |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Retainer, Idler (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | WPW10404617 | Plug, Multivent (silver) (Replaces: 8579117) |
|
$ 68.02 | |||||
| 12 | WPW10404617 | Plug, Multivent (white) (Replaces: 49252) |
|
$ 68.02 | |||||
| 13 | 279640 | Pulley Assembly (Replaces: 3388672) |
|
Immediately | $ 29.26 | ||||
| 14 | 279318 | Terminal, Brass & Tinned (3) (includes Illus. 33) |
|
Immediately | $ 95.44 | ||||
| 15 | 62825 | Clip-s Type |
|
$ 8.11 | |||||
| 16 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 17 | W10123956 | Sound Panel |
|
- | |||||
| 18 | WP233520 | Washer, Thrust (Replaces: 233520) |
|
Immediately | $ 7.52 | ||||
| 19 | W10128087 | Assembly, Door Switch |
|
$ 85.98 | |||||
| 20 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 6.80 | ||||
| 21 | WPW10354249 | Cover-plate (Replaces: 8066115) |
|
$ 8.47 | |||||
| 22 | 8529053 | Ramp, Door |
|
$ 51.37 | |||||
| 23 | W10174745 | Board, Control |
|
$ 307.22 | |||||
| 24 | W11233548 | Panel, Side (r.h.) (white) (Replaces: W10192446) |
|
$ 235.20 | |||||
| 24 | W10192451 | Panel, Side (r.h.) (silver) |
|
$ 118.97 | |||||
| 25 | W11712577 | Strain Relief (Replaces: 694415) |
|
Immediately | $ 6.99 | ||||
| 26 | WP8563727 | Bracket, Control (Replaces: 8563727) |
|
$ 161.72 | |||||
| 27 | 279787 | Motor Assembly 60 Hz. (Replaces: 8538263) |
|
Immediately | $ 222.14 | ||||
| 28 | W10273475 | Base, Cabinet |
|
- | |||||
| 29 | W10837625 | Pulley, 60 Hz. (Replaces: 8578220) |
|
Immediately | $ 11.49 | ||||
| 30 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 29.53 | ||||
| 31 | W11095079 | Power Cord (Replaces: 8529008) |
|
Immediately | $ 124.42 | ||||
| 32 | W11481730 | Bracket, Motor (Replaces: W10242878) |
|
Immediately | $ 85.36 | ||||
| 33 | 279393 | Terminal Block Screw Kit (for Terminal Block) |
|
Immediately | $ 50.09 | ||||
| 34 | WPW10416072 | 4`` - 90 Elbow (Replaces: 49026) |
|
$ 25.34 | |||||
| 35 | 279570 | Strike, Door(2) (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 36 | WP8563747 | Exhaust Pipe & Bracket (Replaces: 8563747) |
|
$ 86.36 | |||||
| 37 | WPW10331278 | Exhaust Pipe (short) (Replaces: 8563750) |
|
$ 74.61 | |||||
| 38 | WP8563749 | Exhaust Pipe (long) (Replaces: 8563749) |
|
$ 83.92 | |||||
| 39 | W10837240 | Idler Bracket (Replaces: 3388674) |
|
Immediately | $ 32.20 | ||||
| 40 | W10180481 | Panel, Rear |
|
- | |||||
| 41 | W10242904 | Harness, Digital Interface |
|
$ 88.52 | |||||
| 42 | WP693995 | Screw, Ground (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 43 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 44 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 45 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 46 | W11295573 | Clip, Toe Panel (Replaces: 8519459) |
|
$ 19.95 | |||||
| 47 | W10246269 | Panel, Toe (white) |
|
$ 89.75 | |||||
| 47 | W10246275 | Panel, Toe (silver) |
|
- | |||||
| 48 | W10180429 | Front Panel (silver) |
|
$ 107.91 | |||||
| 48 | W10180423 | Front Panel (white) |
|
$ 139.69 | |||||
| 49 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) (ultimate Silver) (Replaces: 280171) |
|
Immediately | $ 76.75 | ||||
| 49 | W10470674 | Dryer Exhaust Kit (for Side & Bottom Venting) White (Replaces: 279818) |
|
Immediately | $ 76.75 |
