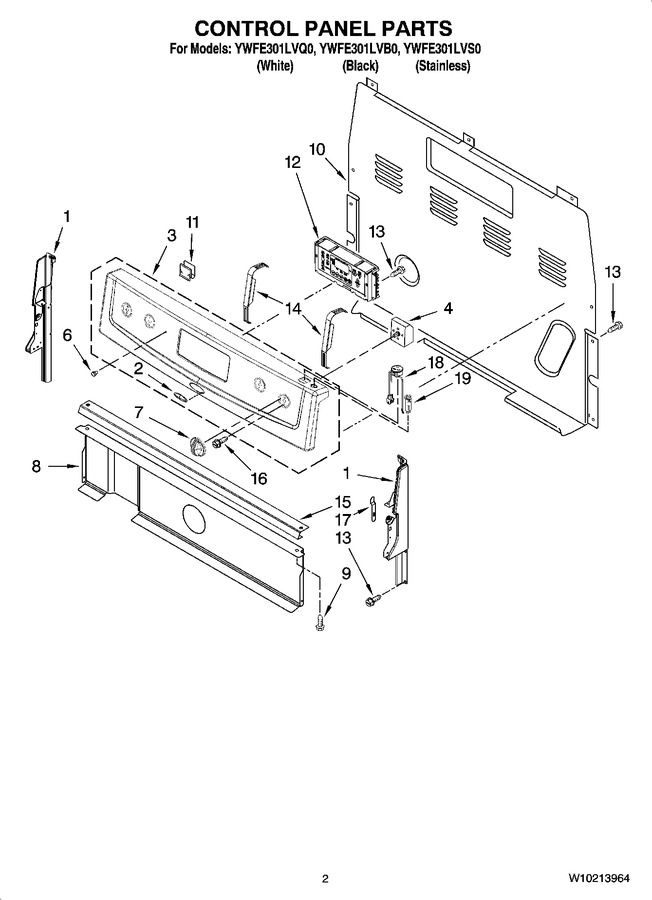

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Lh) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1 | W11219370 | Endcap (white Rh) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1 | W11219664 | Endcap (black Lh) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1 | W11219665 | Endcap (black Rh) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 2 | 9757609 | Nameplate |
|
$ 33.27 | |||||
| 3 | W10170641 | Panel Backguard, White |
|
- | |||||
| 3 | W10170643 | Panel Backguard, Stainless |
|
$ 59.49 | |||||
| 3 | W10170642 | Panel Backguard, Black |
|
- | |||||
| 4 | WP3148952 | Switch, Infinite (right Front) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148953) |
|
Immediately | $ 49.03 | ||||
| 6 | WP3196068 | Lens, Light (3) (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | WP9761964 | Knob, Infinite (4) (black) (Replaces: 9761964) |
|
Immediately | $ 20.07 | ||||
| 7 | WP9761962 | Knob, Infinite (4) (white) (Replaces: 9761962) |
|
Immediately | $ 18.59 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | 3196166 | Screw |
|
$ 6.62 | |||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 11.39 | |||||
| 12 | WPW10476684 | Control, Range (white) (Replaces: W10173529) |
|
Immediately | $ 226.17 | ||||
| 12 | WPW10271747 | Control, Range (black) (Replaces: W10173530) |
|
Immediately | $ 424.00 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | 9762078 | Brkt, Mntg Eoc |
|
$ 38.13 | |||||
| 15 | W10525121 | Brkt-mntg, Console (Replaces: W10182322) |
|
$ 88.97 | |||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 17 | 3196200 | Clip, Spring (2) |
|
$ 9.41 | |||||
| 18 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 100.00 | ||||
| 18 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 16.62 | ||||
| 19 | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 19 | WP9757601 | Circuit Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 |
