SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts

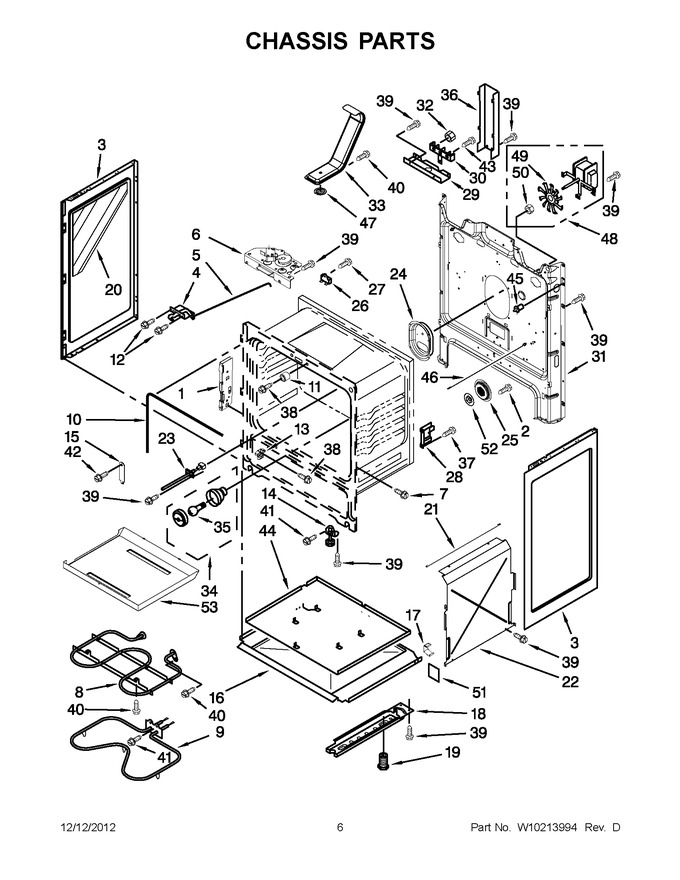

03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10647259		Receiver, Hinge   (Replaces: 9760407)			Immediately	$ 8.39
2	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
3	WPW10575396		Panel, Side (white)   (Replaces: 8053830)				$ 182.19
3	W11730303		Panel, Side (black)   (Replaces: 8053832)			Immediately	$ 160.65
4	WP9761013		Assembly, Door Latch (front)   (Replaces: 9761013)				$ 230.72
5	W10078380		Rod, Latch				$ 85.42
6	WPW10107840		Assembly, Latch (rear)   (Replaces: W10107840)			Immediately	$ 116.15
7	WPW10067840		Screw   (Replaces: W10067840)				$ 7.47
8	W10856603		Element, Broil   (Replaces: W10308476)			Immediately	$ 172.30
9	WP9755770		Element, Bake (hidden)   (Replaces: W10308474)			Immediately	$ 174.47
10	W11542153		Seal, Door   (Replaces: 8522416)			Immediately	$ 45.18
11	W10877054		Spacer - Door   (Replaces: 9758701)			Immediately	$ 50.45
12	W11169708		Screws   (Replaces: 3196560)				$ 13.36
13	WPW10114344		Glide, Drawer   (Replaces: W10114344)			Immediately	$ 7.71
14	WP3196037		Assembly, Foot   (Replaces: 3196037)				$ 78.41
15	9761517		Clip, Door Mounting				$ 43.30
16	W10134121		Tray, Insulation				$ 40.28
17	W10137382		Clip, Glass			Immediately	$ 43.58
18	W11818353		Rail, Base   (Replaces: 9760314)				$ 56.39
19	WPW10058460		Foot, Leveling   (Replaces: W10058460)			Immediately	$ 7.42
20	W10182346		Insulation, Side Panel				$ 77.83
21	W10727426		Rod, Insulation Retainer   (Replaces: W10196451)			Immediately	$ 76.59
22	W10450380		Retainer, Insulation   (Replaces: 9758238)		Appelez-nous	-
23	WPW10181986		Sensor, Oven   (Replaces: W10181986)			Immediately	$ 96.15
24	W10134126		Bracket, Fan				$ 21.58
25	WPW10134124		Cover, Fan   (Replaces: W10134124)			Immediately	$ 92.33
26	WP3196548		Fuse, Thermal   (Replaces: 3196548)			Immediately	$ 45.09
27	3196172		Screw			Immediately	$ 12.12
28	W10404688		Support, Oven   (Replaces: 3186116)				$ 15.92
29	W11763591		Bracket, Service   (Replaces: 3186034)		Appelez-nous	-
30	WP8203546		Block, Terminal   (Replaces: W10246624)			Immediately	$ 27.12
31	9757029		Back, Main		Appelez-nous	-
32	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 6.80
33	WPW10134285		Tube, Vent   (Replaces: W10134285)			Immediately	$ 236.70
34	W11594027		Socket, Light   (Replaces: 3196701)			Immediately	$ 78.31
35	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
36	WPW10326122		Cover, Terminal Block   (Replaces: 9758283)				$ 125.64
37	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
38	WP3400832		Black   (Replaces: 3196168)			Immediately	$ 7.36
39	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
40	WP3196174		Screw, Grounding   (Replaces: 3196174)			Immediately	$ 7.60
41	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
42	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
43	WP3400016		Screw   (Replaces: 3400016)				$ 7.55
44	W10134125		Shield, Heat				$ 143.43
45	9757238		Switch - Door				$ 64.08
46	9757239		Rod, Door Switch				$ 86.73
47	9761301		Screen, Vent				$ 133.11
48	W11582241		Fan, Convection   (Replaces: W10167917)			Immediately	$ 121.26
49	W10758272		Blade, Fan   (Replaces: W10116351)			Immediately	$ 7.12
50	W11548755		Nut   (Replaces: W10213748)				$ 13.84
51	W10646923		Card, Insulator   (Replaces: 9759689)				$ 17.61
52	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 7.52
53	W10183712		Tray, Hidden Bake				$ 219.56
NI	8053915		Insulation, Vent   (Replaces: 8272613)				$ 11.75
NI	W10326347		Insulation, Back   (Replaces: W10219986)		Appelez-nous	-
NI	WPW10208653		Insulation, Wrap   (Replaces: W10208653)			Immediately	$ 52.37

    View Diagram in Separate Window       Print Part List
