SELECT A DIAGRAM

Diagram for 01 - Chassis Assembly
01 - Chassis Assembly

Diagram for 02 - Chassis Assembly
02 - Chassis Assembly

Diagram for 03 - Control Assembly
03 - Control Assembly

Diagram for 04 - Outer Case Assembly
04 - Outer Case Assembly


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
13 20106701 Outercase, Tox Appelez-nous -
63 Y20065008 Seal, Outer Strip Appelez-nous -
73 20075701 Grommet, Power Cord Appelez-nous -
4903 20063301 Grille, Rear Comp Appelez-nous -
NI 20065102 Clip, Basepan Appelez-nous -
NI Y20064101 Sub 20064101a Drain Appelez-nous -
NI WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.43


    View Diagram in Separate Window     Print Icon   Print Part List

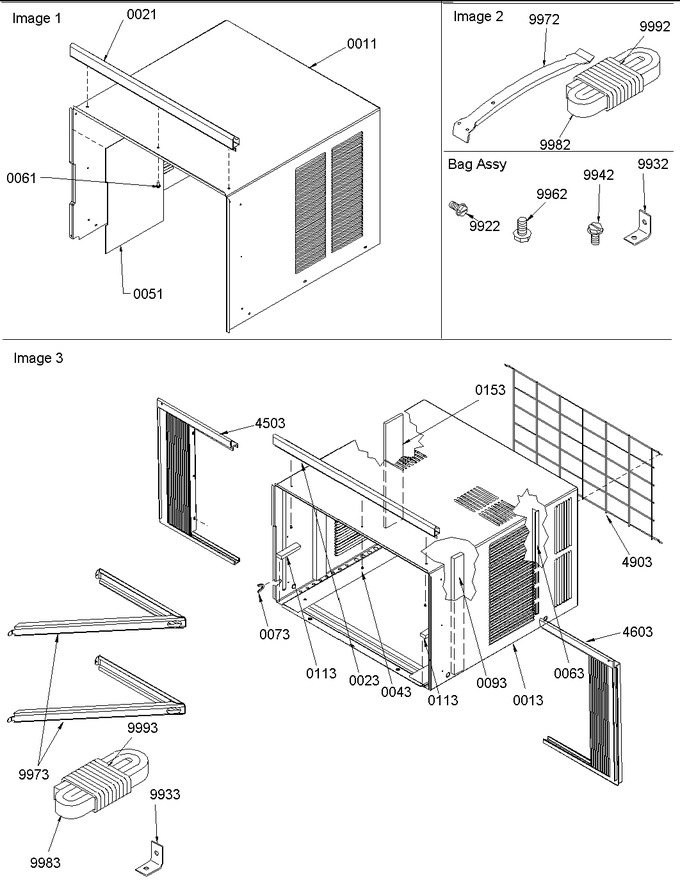

Diagram for 9M32PBEH (BOM: P1214910R)
