SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

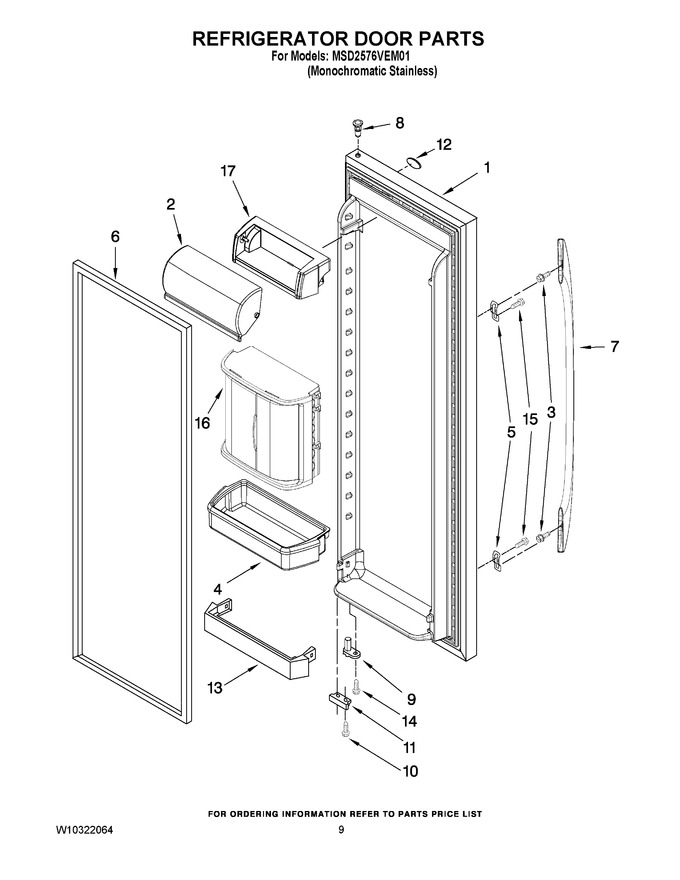

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10313190		Refrigerator Door (includes Item 6) (stainless)		Appelez-nous	-
2	W10252009		Door, Dairy		Appelez-nous	-
3	W10176593		Screw				$ 13.23
4	W10252006		Door Bin (2)				$ 34.05
5	WP2255411		Clip   (Replaces: 2255411)				$ 32.90
6	WPW10136734		Door Gasket, Magnetic   (Replaces: 2327163)				$ 301.85
7	WPW10170743		Handle   (Replaces: W10170743)				$ 328.97
8	WP2182181		Thimble-top   (Replaces: 2200087)				$ 7.34
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.48
10	WP489483		Screw   (Replaces: 489420)				$ 10.27
11	WP2206629B		Bracket, Door Stop   (Replaces: 2206629B)				$ 38.51
12	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 63.45
13	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 68.69
14	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
15	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 8.69
16	W10252010		Beverage Chiller				$ 221.91
17	W10128148		Dairy Bin		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
