SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts

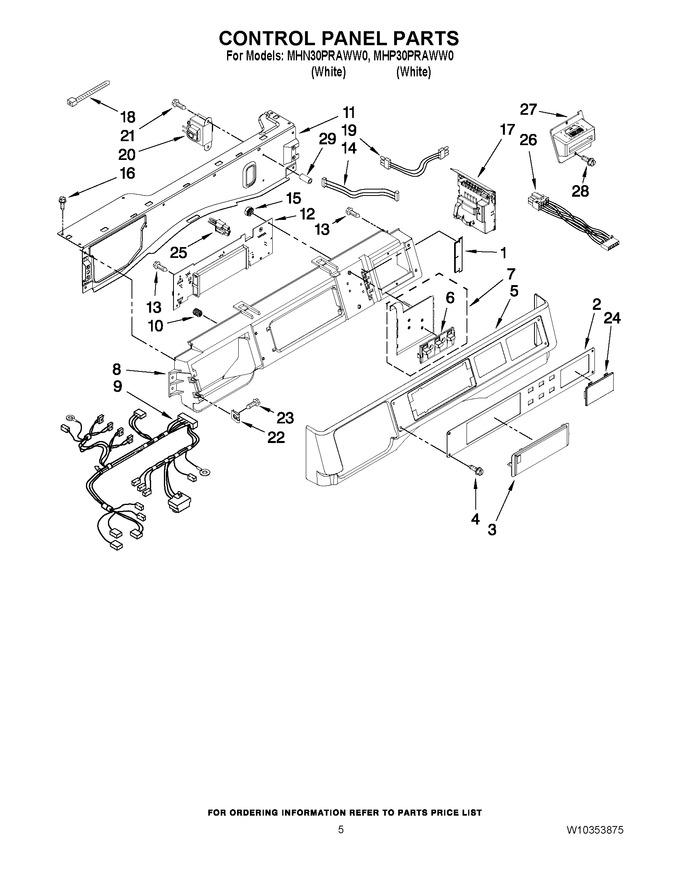

03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10187276		Seal, Console		Appelez-nous	-
2	W10313091		Facia / Overlay		Appelez-nous	-
3	W11637765		Cover, Display   (Replaces: W10267645)				$ 62.63
4	WPW10137457		Screw, 8-32 X 1/2   (Replaces: W10137457)				$ 7.07
5	W10779084		Console, Outer   (Replaces: W10137458)				$ 124.46
6	WPW10424308		Push Button   (Replaces: W10131113)			Immediately	$ 19.30
7	WPW10135389		Push Button & Switch Assembly   (Replaces: W10135389)				$ 131.94
8	W11028369		Console, Inner   (Replaces: W10137426)				$ 302.72
9	W10232996		Ccu To Cold Fill Valve (3 Pole)				$ 50.49
9	W10298332		Harness, Wiring (upper Main) Includes The Following Cable Sets: Not Illustrated)				$ 103.62
9	W10232997		Ccu To Hot Fill Valve (2 Pole)				$ 39.56
10	WPW10189313		Insert   (Replaces: W10189313)				$ 8.31
11	W10294428		Bracket, Console		Appelez-nous	-
12	WPW10311755		User Interface   (Replaces: W10311755)			Immediately	$ 282.59
13	489136		Screw, 3-24 X 3/8				$ 9.72
14	W10155150		Harness, Test				$ 3.02
15	WPW10139046		Nut 6-32   (Replaces: W10139046)				$ 8.31
16	WP489442		Screw, 8-18 X 5/8   (Replaces: W10015090)			Immediately	$ 10.34
17	WPW10732327		Microcomputer, Machine Control   (Replaces: W10311060)			Immediately	$ 269.42
18	WP2205813		Cable Tie   (Replaces: 3429563)				$ 7.30
19	W10837604		Harness, Wiring (console Uic)   (Replaces: W10299342)		Appelez-nous	-
20	WPW10131839		Transformer 120 To 22.5 Vac   (Replaces: W10131839)				$ 126.21
21	8540329		Screw, 8-18 X 7/16		Appelez-nous	-
22	WP9781235		Nut, U-type   (Replaces: 9781235)				$ 11.30
23	WPW10131119		Screw, 8-18 X 1/2   (Replaces: W10131119)				$ 6.57
24	W11131294		Cover, Card Reader   (Replaces: W10213906)		Appelez-nous	-
25	W11129439		Jumper, Service Vault Switch   (Replaces: W10133282)				$ 15.89
26	W10858740		Harness, Wiring Card Reader)   (Replaces: W10133304)				$ 22.64
27	WPW10137454		Bezel, Card Reader   (Replaces: W10137454)				$ 6.03
28	W11096900		Screw, 3-24 X 3/8   (Replaces: W10001220)		Appelez-nous	-
29	W10018050		Caplug		Appelez-nous	-
