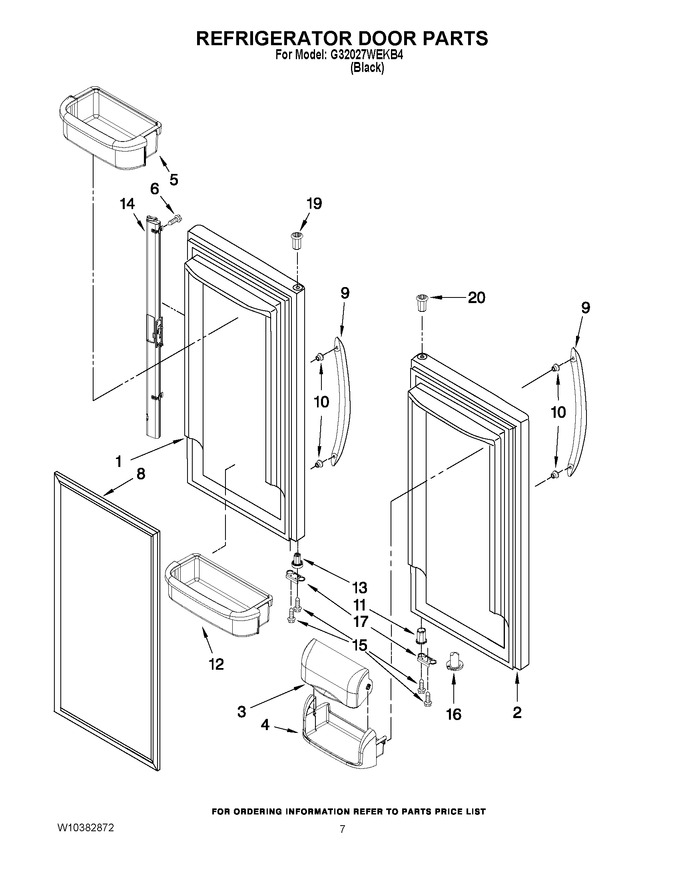

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12732428B		Door, Left (black)		Appelez-nous	-
2	12732422B		Door, Right (black)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 74.40
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 79.21
5	WPW10324005		Bin, Medium (2)   (Replaces: 12557212)				$ 69.98
6	W11311945		Screw   (Replaces: 12990204)				$ 13.25
8	W11368721		Gasket, Door (2) (black)   (Replaces: 12723206B)			Immediately	$ 184.78
9	W10179166		Handle, Door (right Door)		Appelez-nous	-
9	W10179169		Handle, Door (left Door)				$ 72.25
10	WP67006197		Mount-handle   (Replaces: 12990201SP)				$ 8.20
11	WP67002731		Bushing, Door (bottom Right)   (Replaces: 12028601B)			Immediately	$ 7.42
12	WPW10289494		Bin, Gallon (2)   (Replaces: W10289494)				$ 78.82
13	WP67002721		Bushing, Door (bottom Left)   (Replaces: 12699301B)			Immediately	$ 7.43
14	12722811B		Mullion, Door (black)		Appelez-nous	-
15	WP98165		Screw   (Replaces: 12990504)				$ 7.71
16	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 81.29
17	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 13.28
19	12395501B		Bushing, Door Upper Left (black)		Appelez-nous	-
20	67004978		Bushing, Door Upper Right (black)   (Replaces: 10961006B)				$ 19.89
