Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP67006704 Glass, Pantry   (Replaces: 12204824) Special Order $ 237.09

2 12654610 Shelf, Glide Out Appelez-nous -
3 W10241046 Divider, Upper Basket In-Stock Immediately $ 26.27

4 W11812285 Extr, Glass Support (2)   (Replaces: 12655902SP) Special Order $ 48.00

5 12227305 Brace, Pantry (2) Appelez-nous -
6 WP67001719 Track, Pantry   (Replaces: 12531901) In-Stock Immediately $ 8.09

7 67001656 Trivet-wine   (Replaces: 12525101N) Special Order $ 65.24

8 W10171558 Divider, Upper Basket Special Order $ 38.24

9 67002329 Gasket, Pantry   (Replaces: 12656901) Special Order $ 19.88

10 12656202 Housing, Control Special Order $ 133.96

12 WP67003793 Slide, Temperature   (Replaces: 12655402) In-Stock Immediately $ 70.64

14 WPW10235370 Glide, Drawer (2)   (Replaces: W10235370) In-Stock Immediately $ 268.25

16 W10874836 Endcap, Pantry (left)   (Replaces: 12656106) In-Stock Immediately $ 34.59

16 W10874836 Endcap, Pantry (right)   (Replaces: 12656019) In-Stock Immediately $ 34.59

17 WP67004515 Pan, Crisper (2)   (Replaces: 12804601) In-Stock Immediately $ 159.05

18 WP12642303WD Brace, Crisper   (Replaces: 12642303WD) Special Order $ 101.03

19 W10231344 Trim, Crisper Special Order $ 58.15

20 WPW10329866 Frame, Crisper   (Replaces: W10329866) Special Order $ 237.94

21 W11033333 Glass, Crisper Cover   (Replaces: 12204830) Special Order $ 212.25

22 W10273463 Ladder, Center Special Order $ 26.65

23 W10251971 Ladder, Side Special Order $ 53.52

24 67006425 Screw (6)   (Replaces: 12990513) In-Stock Immediately $ 6.57

25 W10215666 Screw (2) Special Order $ 8.58

26 WP67006415 Screw (4)   (Replaces: 12990512) Special Order $ 7.54

27 WP67005864 Slide, Humidity Control   (Replaces: 12530805SP) In-Stock Immediately $ 7.38

28 WP67003795 Rod, Temperature Control   (Replaces: 12655304) Special Order $ 7.61

29 WP67003531 Drawer, Pantry   (Replaces: 12731302) Special Order $ 166.87

30 W11498983 Knob, Temperature Control   (Replaces: 12655204V) Special Order $ 27.58

31 W10827015 Door, Pantry Drawer   (Replaces: 12656816) In-Stock Immediately $ 177.49

32 W10150039 Basket, Freezer (lower) Special Order $ 128.38

33 W10847995 Divider, Lower Basket   (Replaces: W10146440) Special Order $ 83.23

34 WPW10348246 Basket, Freezer (upper)   (Replaces: W10209706) Special Order $ 247.47

35 WP67002759 Divider, Pantry Drawer   (Replaces: 12731901) In-Stock Immediately $ 55.13

36 WP98165 Screw (4)   (Replaces: 12990504) Special Order $ 7.71

37 WPW10326469 Rail-crisper-centr   (Replaces: W10326469) In-Stock Immediately $ 30.03

38 WP13062602 Support-crisper   (Replaces: 13062602) Special Order $ 76.38

39 W11173556 Shaft-rack   (Replaces: 12812904WD) Special Order $ 29.14

40 W10149389 Lift-bail Arm Special Order $ 83.39

41 W10348260 Mount-gear (right) Special Order $ 80.91

41 W10348259 Mount-gear (left) Special Order $ 80.88

42 WPW10474716 Gear (short-left)   (Replaces: W10158749) In-Stock Immediately $ 29.18

42 WPW10474715 Gear (long-right)   (Replaces: W10146446) In-Stock Immediately $ 29.48


    View Diagram in Separate Window     Print Icon   Print Part List

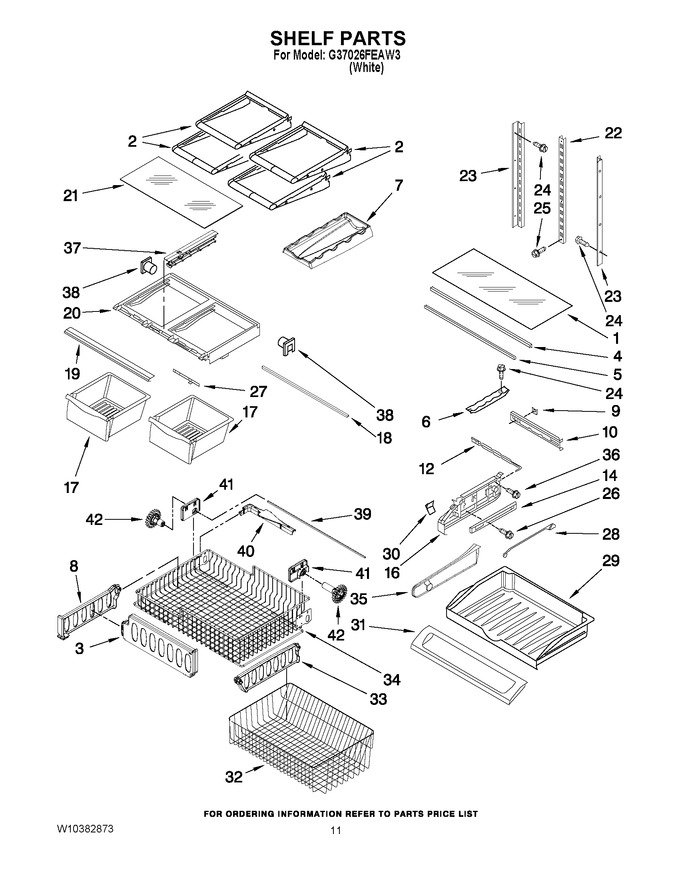

Diagram for G37026FEAW3
