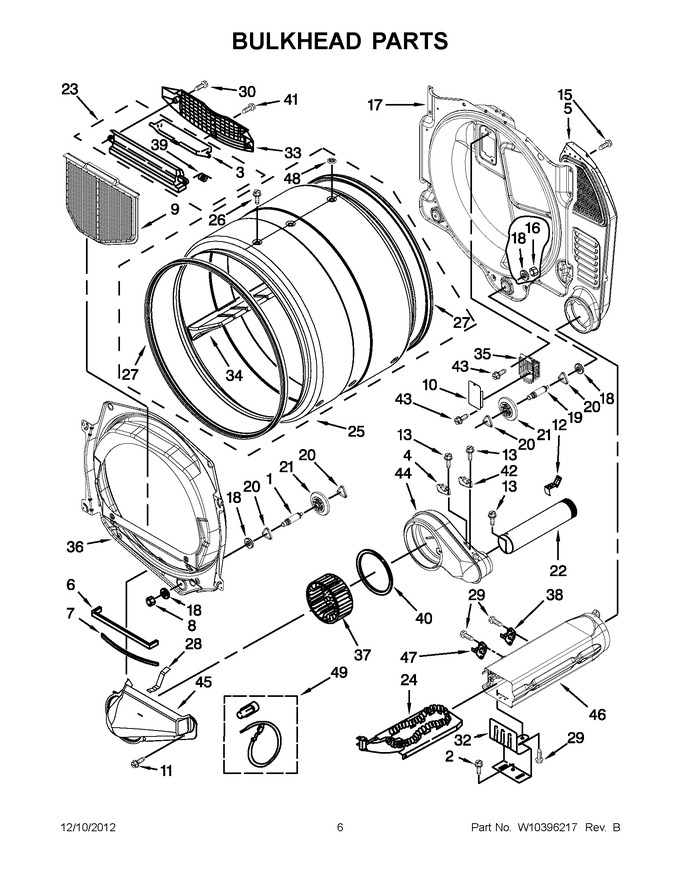

03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 58.79 | ||||
| 2 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.54 | ||||
| 3 | W10181925 | Door, Lint Screen |
|
$ 17.06 | |||||
| 4 | WPW10167627 | Limiter, Thermal 192~f (89c) (Replaces: W10167627) |
|
$ 93.12 | |||||
| 5 | WP3387911 | Assembly, Air Duct (Replaces: 697354) |
|
$ 294.58 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.53 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.53 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: W10080210) |
|
$ 11.49 | |||||
| 9 | W10120998 | Screen, Lint (Replaces: W10049370) |
|
$ 74.66 | |||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 29.38 | |||||
| 11 | W10080380 | Screw, Gas Inlet |
|
- | |||||
| 12 | W11684573 | Clip, Exhaust (Replaces: 8572105) |
|
$ 7.35 | |||||
| 13 | W10080820 | Screw |
|
- | |||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 16 | WPW10080190 | Nut, Hex (Replaces: W10080190) |
|
Immediately | $ 9.01 | ||||
| 17 | WPW10080170 | Bulkhead, Rear (Replaces: W10080170) |
|
$ 320.78 | |||||
| 18 | W11236646 | Washer, Support (Replaces: W10080960) |
|
Immediately | $ 13.26 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 55.27 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: 690997) |
|
Immediately | $ 9.14 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 25.65 | ||||
| 22 | W10225176 | Pipe, Exhaust (Replaces: W10225179) |
|
- | |||||
| 23 | W11197085 | Housing, Outlet (Replaces: W10181928) |
|
$ 40.49 | |||||
| 24 | WP3387749 | Element, Heater (Replaces: 3387749) |
|
Immediately | $ 295.72 | ||||
| 25 | W10865331 | Assembly, Drum Complete (Replaces: W10233255) |
|
- | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
$ 7.36 | |||||
| 27 | 280114 | Seal, Drum Front (Replaces: W10166807) |
|
Immediately | $ 63.74 | ||||
| 28 | WP8066208 | Clip-spring (Replaces: 8066208) |
|
$ 7.95 | |||||
| 29 | W10080280 | Screw |
|
- | |||||
| 30 | W10080640 | Screw |
|
- | |||||
| 32 | 8066099 | Bracket, Heater Box (Replaces: W10119253) |
|
$ 24.13 | |||||
| 33 | W11086603 | Grille, Outlet (Replaces: W10181926) |
|
Immediately | $ 33.21 | ||||
| 34 | W10852390 | Baffle, Drum (Replaces: W10153409) |
|
$ 131.68 | |||||
| 35 | 8578825 | Bracket, Drum Light |
|
$ 19.73 | |||||
| 36 | 8565061 | Bulkhead, Front |
|
$ 228.26 | |||||
| 37 | WPW10349492 | Wheel, Blower (Replaces: W10349492) |
|
Immediately | $ 147.43 | ||||
| 38 | W10154212 | Cut-off, Thermal (Replaces: W10141623) |
|
$ 110.39 | |||||
| 39 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.12 | |||||
| 40 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 7.44 | ||||
| 41 | WP488729 | Screw (Replaces: 695240) |
|
Immediately | $ 7.45 | ||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 39.25 | ||||
| 43 | W10080360 | Screw |
|
- | |||||
| 44 | WP8544363 | Housing, Blower (Replaces: W10151271) |
|
$ 144.23 | |||||
| 45 | WPW10128606 | Assembly, Lint Duct (Replaces: W10286419) |
|
$ 195.73 | |||||
| 46 | W10802681 | Assembly, Weld Heater Box (Replaces: 3392537) |
|
Immediately | $ 180.98 | ||||
| 47 | WPW10168175 | Thermostat (Replaces: W10168175) |
|
$ 117.03 | |||||
| 48 | W10665050 | Cap, Plug (Replaces: W10128544) |
|
$ 18.14 | |||||
| 49 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 |
