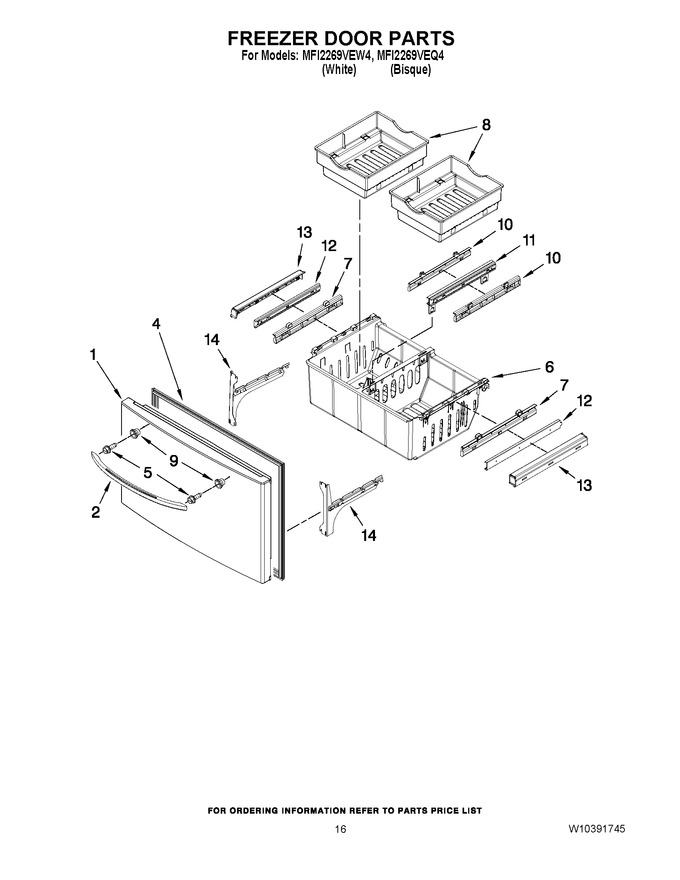

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977868WQ		Freezer Door (white)   (Replaces: W10160134)				$ 1,046.33
1	W10160128		Freezer Door (bisque)		Appelez-nous	-
2	W10123793		Handle, Door (bisque)		Appelez-nous	-
2	WPW10123792		Handle, Door (white)   (Replaces: W10123792)				$ 196.97
4	W10443323		Gasket, Door (white)   (Replaces: W10164046)			Immediately	$ 318.45
5	W10290759		Screw-handle				$ 5.83
6	W10166235		Bin, Lower   (Replaces: 13036201SP)				$ 166.25
7	W10166742		Adapter, Bin (outer)   (Replaces: 12925403SP)				$ 88.31
8	W10166236		Bin, Upper (right)   (Replaces: 13036302)				$ 231.54
8	WP12924903		Bin, Upper (left)   (Replaces: 12924903)				$ 119.07
9	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 11.30
10	12925404SP		Adapter, Bin (inner)				$ 40.79
11	WPW10235357		Bracket/glide Assembly   (Replaces: W10235357)			Immediately	$ 297.88
12	WPW10235367		Glide, Upper   (Replaces: W10235367)				$ 282.09
13	W10826788		Retainer, Glide (left)   (Replaces: 12925501SP)				$ 51.75
13	WP67006368		Retainer, Glide (right)   (Replaces: 12925502SP)				$ 173.61
14	WPW10330993		Bracket, Door Slide (right)   (Replaces: W10122148)				$ 149.48
14	WPW10330991		Bracket, Door Slide (left)   (Replaces: W10122147)				$ 147.88
