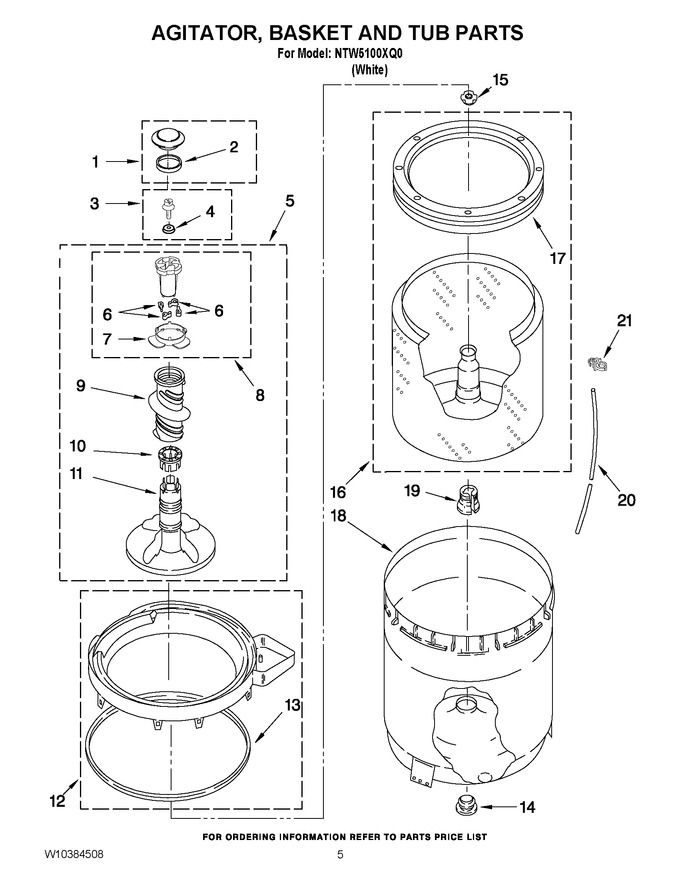

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3362061 | Cap, Agitator (Replaces: 63973) |
|
Immediately | $ 61.79 | ||||
| 2 | WP358912 | Seal, Agitator Cap (Replaces: 358912) |
|
$ 7.44 | |||||
| 3 | WP358237 | Screw & Washer (5/16-24 X 1) (Replaces: 358237) |
|
Immediately | $ 7.97 | ||||
| 4 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 9.98 | ||||
| 5 | 285727 | Agitator, Complete (Replaces: 3361598) |
|
Immediately | $ 310.91 | ||||
| 6 | 80040 | Dog, Agitator (Replaces: 3366877) |
|
Immediately | $ 3.28 | ||||
| 7 | WP3363661 | Bearing, Driven Cam (Replaces: 3363661) |
|
$ 7.41 | |||||
| 8 | 285748 | Cam, Driven (Replaces: 3363662) |
|
Immediately | $ 39.84 | ||||
| 9 | WP3360824 | Auger, Agitator (Replaces: 3360824) |
|
$ 200.31 | |||||
| 10 | 285587 | Spacer, Thrust (Replaces: 3350389) |
|
Immediately | $ 3.98 | ||||
| 11 | WP389386 | Agitator (Replaces: 389386) |
|
$ 182.20 | |||||
| 12 | W10880720 | Splash Shield Assembly (Replaces: W10445870) |
|
Immediately | $ 210.01 | ||||
| 12 | W10880720 | Tub Ring (Replaces: 8528150) |
|
Immediately | $ 210.01 | ||||
| 13 | WP3976308 | Gasket, Tub Ring (Replaces: 3976308) |
|
Immediately | $ 26.69 | ||||
| 14 | W10814296 | Gasket, Centerpost (Replaces: 383727) |
|
Immediately | $ 8.98 | ||||
| 15 | WP21366 | Nut, Spanner (Replaces: 21366) |
|
Immediately | $ 10.40 | ||||
| 16 | W10389329 | Basket (Replaces: 8526017) |
|
Immediately | $ 333.96 | ||||
| 16 | W10389329 | Basket Assembly |
|
Immediately | $ 333.96 | ||||
| 17 | WP387240 | Balance Ring (Replaces: 387240) |
|
Immediately | $ 172.04 | ||||
| 18 | 63849 | Tub |
|
$ 275.66 | |||||
| 19 | WP389140 | Block, Basket Drive (Replaces: 389140) |
|
Immediately | $ 24.74 | ||||
| 20 | WP353244 | Hose, Pressure Switch (Replaces: W10297437) |
|
Immediately | $ 78.00 | ||||
| 21 | 2219077 | Clip, Pressure Switch Hose |
|
$ 57.82 |
