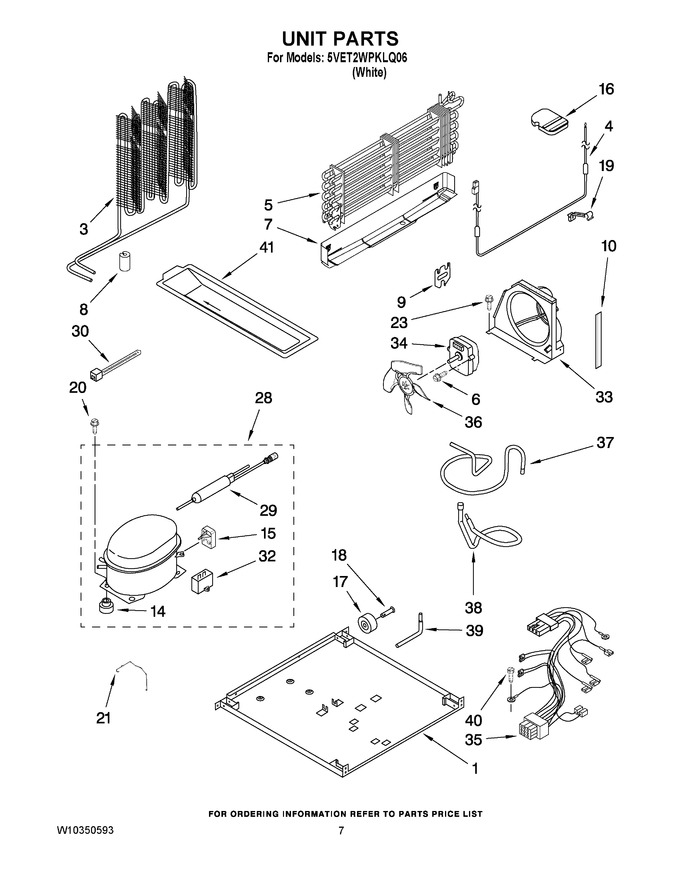

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2320187 | Plate, Unit Mounting |
|
- | |||||
| 3 | W10159808 | Condenser |
|
- | |||||
| 4 | W10123580 | Heater, Defrost |
|
- | |||||
| 5 | 2254249 | Evaporator Assy. |
|
$ 239.15 | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 10.45 | ||||
| 7 | 2254295 | Drain Pan |
|
$ 74.91 | |||||
| 8 | W10852725 | Grommet-cond.(4) (Replaces: 2319835) |
|
Immediately | $ 7.28 | ||||
| 9 | 2176301 | Bracket, Heater |
|
$ 6.37 | |||||
| 10 | 2300638 | Extension, Air Baffle |
|
$ 52.69 | |||||
| 14 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.01 | |||||
| 14 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.57 | |||||
| 15 | 2321301 | Start Relay Combo Combination (start Relay And Overload For Production Compressor Only) |
|
- | |||||
| 16 | 2201185 | Support Block |
|
$ 8.21 | |||||
| 17 | WPW10475495 | Roller (2) (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Rivet (Replaces: 2221797) |
|
Immediately | $ 17.21 | ||||
| 19 | 2182338 | Clip, Heater |
|
$ 6.62 | |||||
| 20 | 876811 | Screw (Replaces: 489373) |
|
$ 7.01 | |||||
| 21 | 2302129 | Strap |
|
- | |||||
| 23 | 3400518 | Screw |
|
$ 12.27 | |||||
| 28 | W10170300 | Compressor (includes Items 14, 29 & 32) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10172583) |
|
- | |||||
| 29 | WPW10143759 | Drier (service) (Replaces: W10177049) |
|
Immediately | $ 27.70 | ||||
| 30 | WPW10339879 | Clamp (Replaces: 2155774) |
|
$ 7.47 | |||||
| 32 | 2321245 | Capacitor (production) (Replaces: 2254217) |
|
- | |||||
| 32 | 2321245 | Capacitor (service) |
|
- | |||||
| 33 | 2302250 | Air Baffle |
|
$ 109.95 | |||||
| 34 | WP2321271 | Motor, Condenser (Replaces: 2321271) |
|
$ 292.92 | |||||
| 35 | W10123567 | Wire Assembly, Unit |
|
- | |||||
| 36 | W11458267 | Fan, Blade (Replaces: 2225834) |
|
Immediately | $ 22.67 | ||||
| 37 | 2254394 | Tube, Discharge |
|
- | |||||
| 38 | 2214924 | Tube, Suction |
|
$ 92.88 | |||||
| 39 | 2154109 | Tube, Process |
|
$ 68.63 | |||||
| 40 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 41 | WP2254574 | Tray, Evaporator (Replaces: 2254574) |
|
$ 165.23 | |||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| NI | N/P | Refrigerant Charge (4.23 Ozs. (r134a)) |
|
- | |||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access(3/4``) |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 86.33 |
