SELECT A DIAGRAM

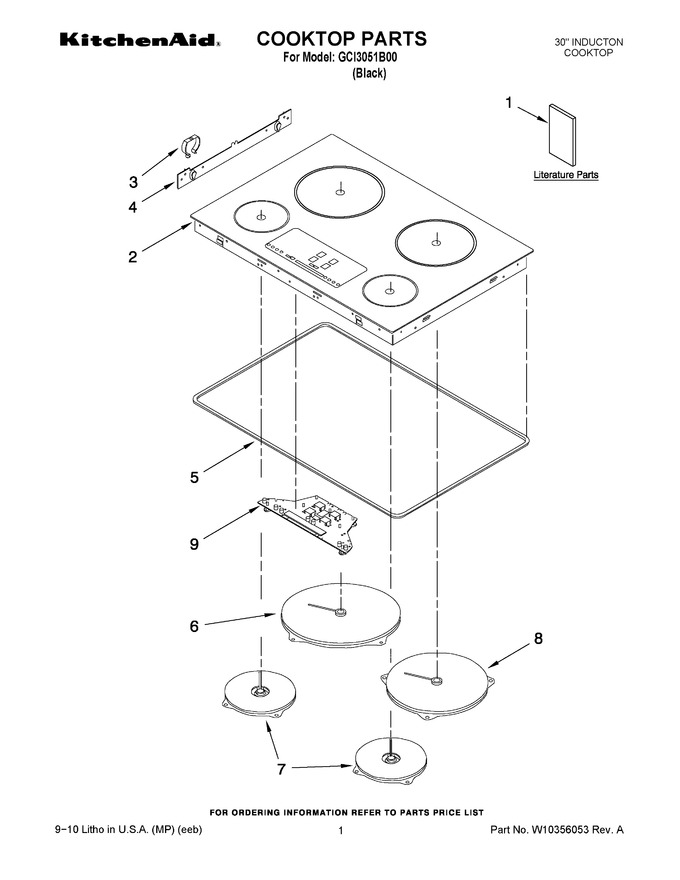

01 - Cooktop Parts
02 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10356035 | Instruct, Install |
|
- | |||||
| 2 | WPW10328518 | Cooktop, Glass (Replaces: W10328518) |
|
$ 462.35 | |||||
| 3 | W10810497 | Spring, Cooktop (Replaces: W10328375) |
|
Immediately | $ 20.10 | ||||
| 4 | WPW10328377 | Bracket, Support (Replaces: W10328377) |
|
Immediately | $ 47.75 | ||||
| 5 | WPW10237005 | Gasket, Cooktop (Replaces: W10237005) |
|
Immediately | $ 147.20 | ||||
| 6 | WPW10328391 | Hotplate (lr) (Replaces: W10328391) |
|
Immediately | $ 336.87 | ||||
| 7 | W10328384 | Hotplate (lf & Rf) |
|
$ 223.07 | |||||
| 8 | W10328387 | Hotplate (rr) |
|
$ 244.65 | |||||
| 9 | WPW10328453 | Display Board (Replaces: W10328453) |
|
Immediately | $ 673.15 |
