SELECT A DIAGRAM
01 - Cover Sheet

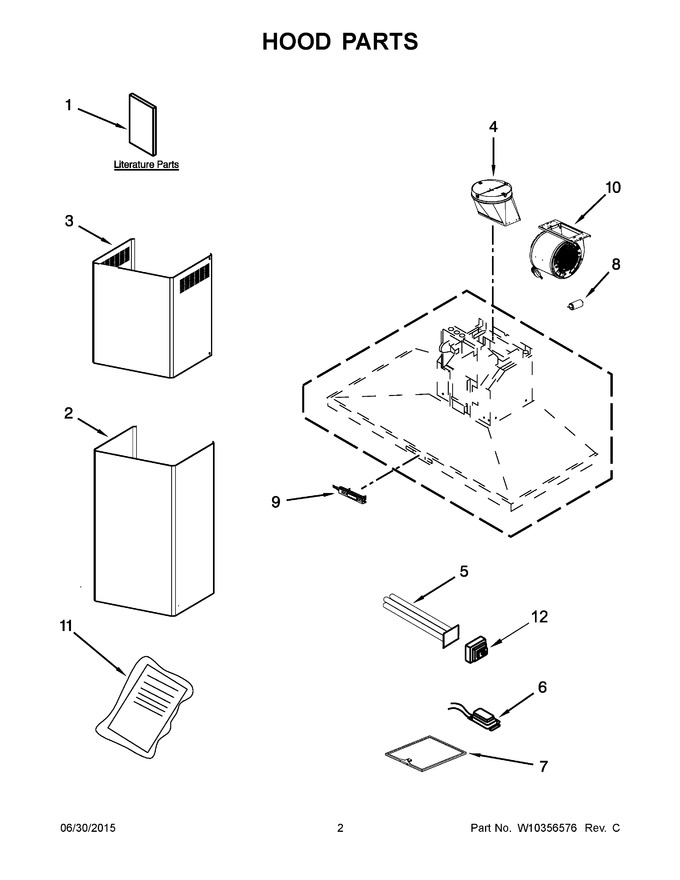

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10320580 | Use & Care Guide |
|
- | |||||
| 2 | W11417192 | Chimney, Lower (Replaces: W10350864) |
|
$ 338.23 | |||||
| 3 | W11417192 | Chimney, Upper (Replaces: W10350865) |
|
$ 338.23 | |||||
| 4 | WPW10313841 | Damper, Hood (Replaces: W10313841) |
|
$ 179.54 | |||||
| 5 | W10350862 | Bulb, Light |
|
$ 74.77 | |||||
| 6 | W10350895 | Ballast |
|
$ 123.96 | |||||
| 7 | W10169961A | Filter, Grease (Replaces: W10169961) |
|
Immediately | $ 39.53 | ||||
| 8 | 8186677 | Capacitor (25 Mf) |
|
$ 212.19 | |||||
| 9 | W10819427 | Switch, Push Button |
|
$ 172.42 | |||||
| 10 | WPW10350820 | Fan Assembly (Replaces: W10350820) |
|
$ 466.18 | |||||
| 11 | W11245986 | Hardware, Install (Replaces: W10350866) |
|
$ 115.22 | |||||
| 12 | W10515801 | Socket, Bulb |
|
$ 119.21 | |||||
| 8A | W10350867 | Capacitor (16 Mf) |
|
$ 84.93 | |||||
| 8B | W10350868 | Capacitor (15 Mf) |
|
- |
