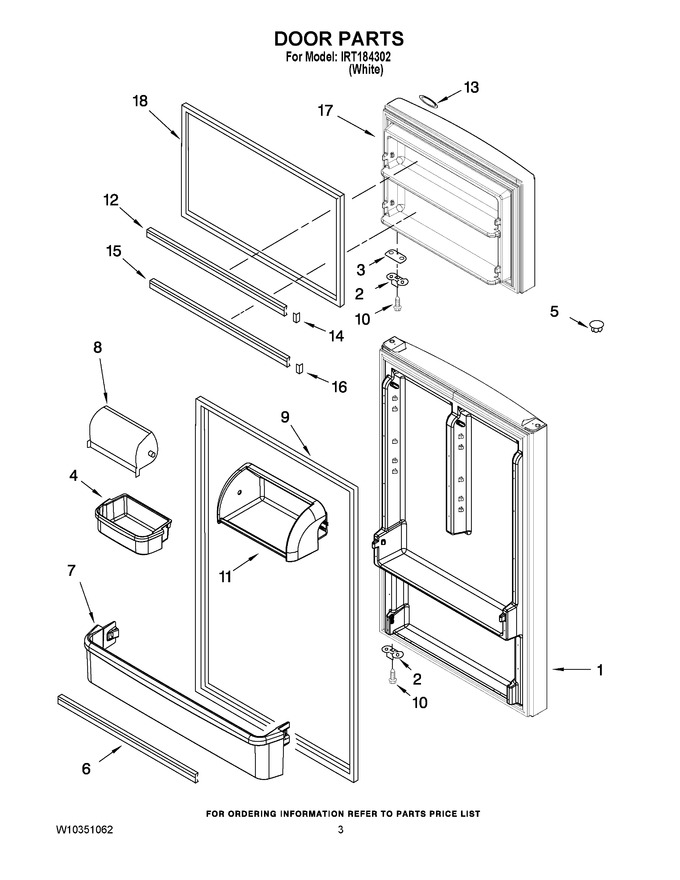

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2264716W | Refrigerator Door (includes Illus. 9 & Molded Door Handle) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | WP2258681W | Shim, Door Stop (Replaces: 2258681W) |
|
Immediately | $ 6.80 | ||||
| 4 | W11396038 | Bin, Door (3) (Replaces: 2266150) |
|
$ 145.75 | |||||
| 5 | WP2212648 | Hole Plug (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 6 | WP2266738 | Trim, Door (Replaces: 2266738) |
|
$ 105.55 | |||||
| 7 | 2266146 | Trim, Door Shelf |
|
- | |||||
| 8 | 2264478 | Door, Compartment |
|
$ 32.58 | |||||
| 9 | WP2319264W | Door Gasket, Magnetic (Replaces: 2264727) |
|
Immediately | $ 296.17 | ||||
| 10 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.77 | |||||
| 11 | 2264477 | Housing, Compartment |
|
$ 87.34 | |||||
| 12 | WPW10234241 | Trim, Door (narrow) (Replaces: W10234241) |
|
Immediately | $ 110.12 | ||||
| 13 | 2263431 | Nameplate |
|
$ 70.27 | |||||
| 14 | WP2156003 | End Cap-trim (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 15 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 108.51 | ||||
| 16 | WP2195916K | Endcap, Trim (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 17 | 2264717W | Freezer Door (includes Illus. 18 & Molded Door Handle) |
|
- | |||||
| 18 | WP2319263W | Door Gasket, Magnetic (Replaces: 2264726) |
|
Immediately | $ 238.68 |
