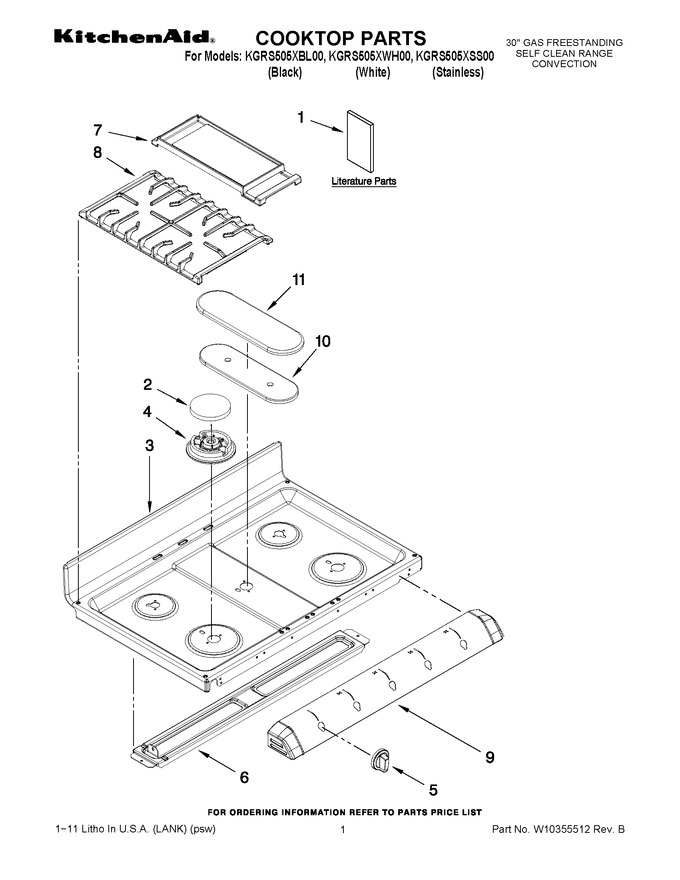

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10291453 | Owners Manual |
|
- | |||||
| 1 | W10311752 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Brochure, Tips (safe Cooking) |
|
- | |||||
| 1 | W10345639 | Instructions, Installation |
|
- | |||||
| 2 | WPW10299236 | Kit, Burner Cap (Replaces: W10299236) |
|
Immediately | $ 202.94 | ||||
| 3 | W10401393 | Cooktop (stainless) (Replaces: W10330921) |
|
$ 393.71 | |||||
| 3 | W10336330 | Cooktop (black) (Replaces: W10260169) |
|
$ 378.06 | |||||
| 3 | W10336331 | Cooktop (white) (Replaces: W10260170) |
|
$ 376.27 | |||||
| 4 | WPW10336094 | Burners (center) (Replaces: W10336094) |
|
$ 205.03 | |||||
| 4 | WPW10406878 | Burners (left Front) (Replaces: 8286183) |
|
$ 96.73 | |||||
| 4 | WPW10406243 | Burners (left & Right Rear) (Replaces: 8286181) |
|
Immediately | $ 35.17 | ||||
| 4 | WPW10406797 | Burners (right Front (12k)) (Replaces: 8286182) |
|
$ 83.62 | |||||
| 5 | WPW10295131 | Knob, Control (stainless) (Replaces: W10295131) |
|
Immediately | $ 20.84 | ||||
| 5 | W10295130 | Knob, Control (black) |
|
$ 41.81 | |||||
| 5 | WPW10290522 | Knob, Control (white) (Replaces: W10290522) |
|
$ 40.24 | |||||
| 6 | W10272357 | Bracket, Cooktop Support |
|
- | |||||
| 7 | W10311218 | Griddle |
|
$ 87.90 | |||||
| 8 | WPW10260069 | Kit, Grate (Replaces: W10260069) |
|
$ 305.92 | |||||
| 9 | W10284717 | Panel, Manifold (stainless) |
|
$ 127.17 | |||||
| 9 | WPW10204705 | Panel, Manifold (white) (Replaces: W10204705) |
|
Immediately | $ 306.07 | ||||
| 9 | W10284716 | Panel, Manifold (black) |
|
- | |||||
| 10 | WPW10333445 | Base, Burner Cap (fish Burner) (Replaces: W10333445) |
|
$ 99.05 | |||||
| 11 | W10171137 | Kit, Burner Cap (fish Burner Only) (gray) |
|
$ 104.95 | |||||
| 11 | WPW10171140 | Kit, Burner Cap (fish Burner Only) (black) (Replaces: W10171140) |
|
$ 151.62 |
