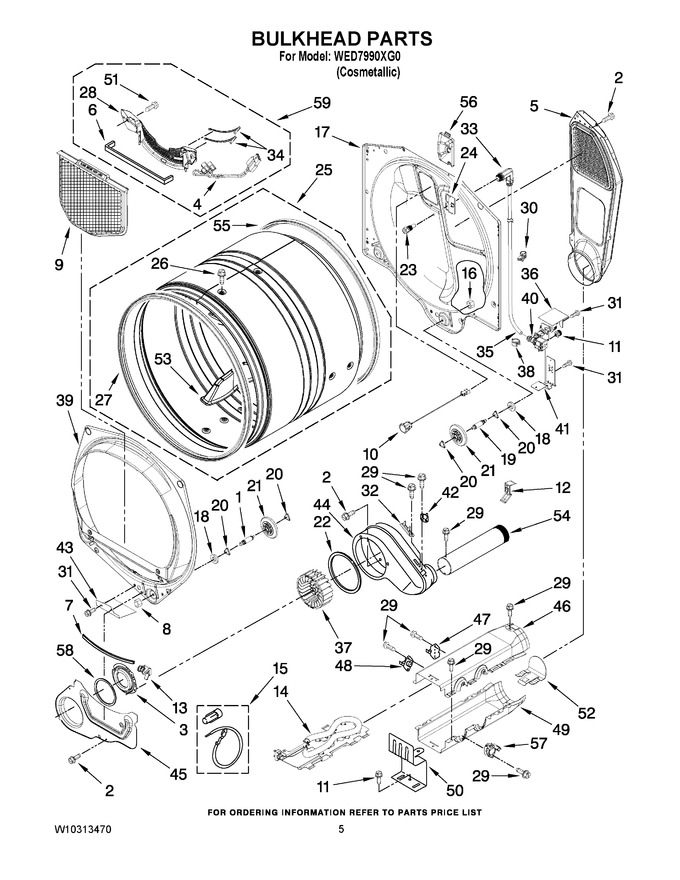

03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft,r.h. Thread (Replaces: 8575324) |
|
Immediately | $ 58.79 | ||||
| 2 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 3 | W10211901 | Colar, Lint Duct |
|
$ 84.67 | |||||
| 4 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.28 | ||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 294.58 | |||||
| 6 | W11676493 | Seal, Housing Outlet (Replaces: W10211950) |
|
Immediately | $ 26.13 | ||||
| 7 | WP3387242 | Seal, Drum Felt (Replaces: 3387242) |
|
Immediately | $ 29.24 | ||||
| 8 | W11812294 | Nut, 3/8 X 16 (r.h.) (Replaces: 3934666) |
|
$ 11.49 | |||||
| 9 | W11758174 | Lint Screen (Replaces: W10211906) |
|
Immediately | $ 50.94 | ||||
| 10 | W10211948 | Drum Light Assembly |
|
- | |||||
| 11 | W10859554 | Coupling, Hose (Replaces: W10044605) |
|
$ 77.45 | |||||
| 12 | W11684573 | Clip, Exhaust Pipe (Replaces: 8572105) |
|
$ 7.35 | |||||
| 13 | W10414388 | Clip, Lint Duct (Replaces: W10306123) |
|
$ 13.10 | |||||
| 14 | WP8544771 | Heater Element (Replaces: 8544771) |
|
Immediately | $ 126.52 | ||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair ) |
|
Immediately | $ 7.13 | ||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10001120) |
|
Immediately | $ 9.01 | ||||
| 17 | W10211946 | Bulkhead, Rear |
|
$ 147.88 | |||||
| 18 | W11236646 | Washer, Support (Replaces: 3387459) |
|
Immediately | $ 13.26 | ||||
| 19 | WPW10359272 | Shaft, R.h. Thread (Replaces: 8575325) |
|
Immediately | $ 55.27 | ||||
| 20 | WPW10512946 | Tri-ring (Replaces: 690997) |
|
Immediately | $ 9.14 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 25.65 | ||||
| 22 | W10211933 | Seal, Cover Plate |
|
- | |||||
| 23 | WPW10277503 | Nozzle & Screen Assembly (Replaces: W10277503) |
|
$ 230.09 | |||||
| 24 | W10249422 | Nozzle, Bracket Rear |
|
- | |||||
| 25 | W10541656 | Drum Assembly (complete) (Replaces: W10280782) |
|
$ 473.90 | |||||
| 26 | W10853898 | Screw, 8-16 X 1/2 (Replaces: W10219342) |
|
$ 7.36 | |||||
| 27 | W11193479 | Seal, Drum (Replaces: W10273050) |
|
Immediately | $ 20.36 | ||||
| 28 | W11125442 | Grille, Outlet (Replaces: W10211903) |
|
$ 212.80 | |||||
| 29 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 30 | WP3391018 | Cable, Tie (Replaces: 3391018) |
|
$ 30.09 | |||||
| 31 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 3390814) |
|
Immediately | $ 7.43 | ||||
| 32 | WP3392519 | Thermal-fuse (91° C) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 33 | WPW10347739 | Nozzle & Hose Assembly (include Items, 23,30 & 56 ) (Replaces: W10249460) |
|
$ 271.59 | |||||
| 34 | WP3387223 | Electrode, Sensor (Replaces: 3387223) |
|
Immediately | $ 6.58 | ||||
| 35 | WPW10347739 | Hose, (not Servicable Included With Item. 33 ) (Replaces: W10249459) |
|
$ 271.59 | |||||
| 36 | W10815373 | Cover, Inlet Valve (Replaces: W10184825) |
|
Immediately | $ 143.98 | ||||
| 37 | WP697772 | Wheel, Blower (Replaces: W10211915) |
|
Immediately | $ 73.78 | ||||
| 38 | W10044599 | Clip, Push-to-connect (Replaces: W10044615) |
|
$ 13.50 | |||||
| 39 | W10673491 | Bulkhead, Front Door Screen (Replaces: W10211930) |
|
Immediately | $ 325.80 | ||||
| 40 | W10815373 | Valve,water Inlet (Replaces: W10276441) |
|
Immediately | $ 143.98 | ||||
| 41 | W10276440 | Bracket, Valve |
|
- | |||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 39.25 | ||||
| 43 | W11257251 | Shield, Blower Housing (Replaces: W10128629) |
|
$ 64.85 | |||||
| 44 | WPW10211911 | Housing, Blower (Replaces: W10211911) |
|
Immediately | $ 134.72 | ||||
| 45 | WPW10211896 | Lint Duct Assembly (Replaces: W10211896) |
|
$ 197.73 | |||||
| 46 | WP8544769 | Housing, Slot Heater Box (Replaces: 8544769) |
|
$ 156.51 | |||||
| 47 | 279973 | Thermal Cut-off (include, Item. 48) (Replaces: 8318314) |
|
Immediately | $ 68.04 | ||||
| 48 | WP3391914 | Thermostat 295°f (215°c) High Limit (Replaces: 3391914) |
|
Immediately | $ 112.91 | ||||
| 49 | 8544770 | Housing, Tab Heater Box |
|
$ 75.92 | |||||
| 50 | 8066099 | Bracket, Heater Box |
|
$ 24.13 | |||||
| 51 | WP3387230 | Screw, 10-16 X 1 (Replaces: 3387230) |
|
Immediately | $ 7.86 | ||||
| 52 | 8544776 | Flange, Heater Box |
|
$ 17.11 | |||||
| 53 | W10280771 | Baffle, Drum |
|
Immediately | $ 103.79 | ||||
| 54 | 279936 | Pipe-exhaust (Replaces: 8563745) |
|
$ 138.76 | |||||
| 55 | 280114 | Seal-drum Felt (Replaces: 697694) |
|
Immediately | $ 63.74 | ||||
| 56 | WPW10208422 | Rear Deflector (Replaces: W10208422) |
|
$ 87.14 | |||||
| 57 | WP8557403 | Inlet Thermistor High Limit Stat (Replaces: 8557403) |
|
Immediately | $ 90.20 | ||||
| 58 | W11821372 | Seal-collar Blower (Replaces: W10211899) |
|
$ 20.15 | |||||
| 59 | W10906551 | Outlet Grill & Housing Assembly (Replaces: W10211902) |
|
Immediately | $ 317.09 |
