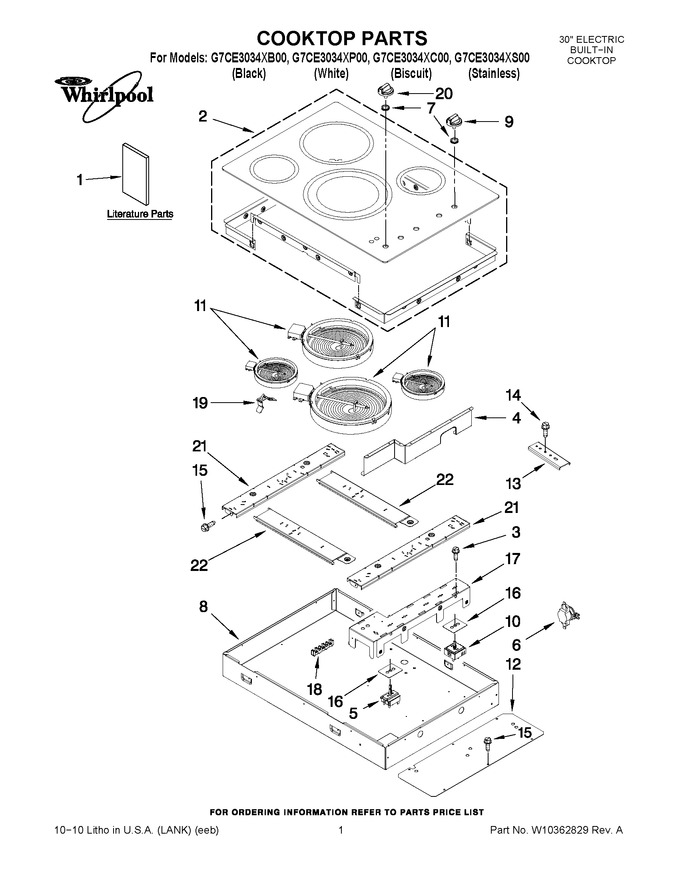

01 - Cooktop Parts
02 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10346695 | Installation Instructions |
|
- | |||||
| 1 | W10346696 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10291396 | Wiring Diagram |
|
- | |||||
| 2 | W10365136 | Cooktop (stainless) (Replaces: W10352557) |
|
$ 558.79 | |||||
| 2 | W10365132 | Cooktop (black) (Replaces: W10318980) |
|
$ 574.93 | |||||
| 2 | W10365134 | Cooktop (white) (Replaces: W10318981) |
|
$ 568.09 | |||||
| 2 | W10338740 | Cooktop (biscuit) |
|
- | |||||
| 3 | WP486579 | Screw (Replaces: 311865) |
|
$ 7.10 | |||||
| 4 | W10311796 | Shield, Switch |
|
- | |||||
| 5 | WP9762441 | Switch, Rotary (Replaces: 9762441) |
|
$ 139.46 | |||||
| 6 | WP7450P034-60 | Limit, Oven (Replaces: 7450P034-60) |
|
$ 205.61 | |||||
| 7 | WPW10293874 | Grommet (Replaces: W10293874) |
|
Immediately | $ 7.61 | ||||
| 8 | W10311952 | Box, Burner |
|
- | |||||
| 9 | WPW10316664 | Knob, Control (stainless) (Replaces: W10316664) |
|
Immediately | $ 24.05 | ||||
| 9 | WPW10316662 | Knob, Control (black) (Replaces: W10316662) |
|
Immediately | $ 20.03 | ||||
| 9 | W10859325 | Knob, Control (white) (Replaces: W10316663) |
|
$ 18.53 | |||||
| 9 | W10316665 | Knob, Control (biscuit) |
|
- | |||||
| 10 | WPW10326246 | Switch, Infinite (lf) (Replaces: W10326246) |
|
$ 137.72 | |||||
| 10 | WP74007840 | Switch, Infinite (rr) (Replaces: 7403P755-60) |
|
Immediately | $ 171.41 | ||||
| 10 | WPW10244639 | Switch, Infinite (lr) (Replaces: W10244639) |
|
Immediately | $ 139.50 | ||||
| 10 | WPW10312185 | Switch, Infinite (rf) (Replaces: W10312185) |
|
Immediately | $ 138.94 | ||||
| 11 | W11171119 | Element, Surface (lf/rr) (Replaces: 8273994) |
|
Immediately | $ 203.06 | ||||
| 11 | WPW10189281 | Element, Surface (rf) (Replaces: W10189281) |
|
Immediately | $ 339.79 | ||||
| 11 | W11047722 | Element, Surface (lr) (Replaces: 8273992) |
|
Immediately | $ 119.21 | ||||
| 12 | W10311956 | Plate, Bottom |
|
$ 83.92 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 83.57 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.80 | |||||
| 15 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 16 | WP71002569 | Gasket, Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.51 | ||||
| 17 | W10291138 | Plate, Switch |
|
- | |||||
| 18 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 31.65 | ||||
| 19 | WPW10225448 | Spring, Push-in (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 20 | WPW10316815 | Knob, Accusimmer (black) (Replaces: W10316815) |
|
Immediately | $ 14.89 | ||||
| 20 | W11213837 | Knob, Accusimmer (stainless) (Replaces: W10316816) |
|
Immediately | $ 65.74 | ||||
| 20 | W10338495 | Knob, Accusimmer (biscuit) |
|
- | |||||
| 20 | W10318662 | Knob, Accusimmer (white) |
|
$ 62.95 | |||||
| 21 | W10311789 | Rail, Vertical |
|
$ 66.20 | |||||
| 22 | W10311790 | Rail, Horizontal |
|
- |
