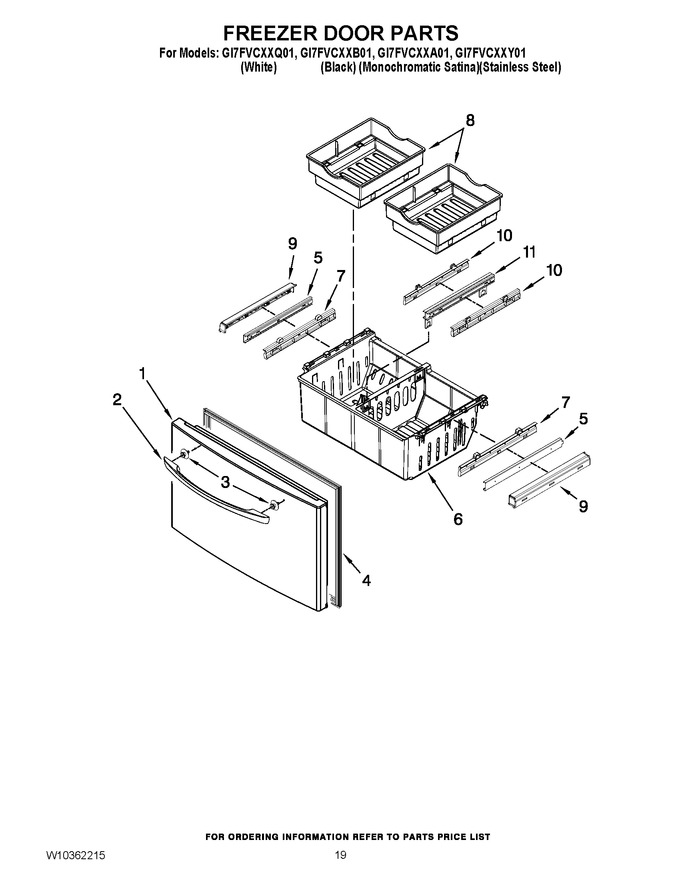

10 - Freezer Door Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977823W		Freezer Door (white)		Appelez-nous	-
1	12977835B		Freezer Door (black)		Appelez-nous	-
1	12977825L		Freezer Door (satina)		Appelez-nous	-
1	12977847S		Freezer Door (stainless)		Appelez-nous	-
2	W10223025		Handle, Door (stainless)		Appelez-nous	-
2	WPW10223023K		Handle, Door (black)   (Replaces: W10223023)				$ 180.59
2	W10223022		Handle, Door (white)		Appelez-nous	-
3	WP12992902		Screw, Handle   (Replaces: 12992902)				$ 10.72
4	WPW10714545		Gasket, Door (apollo Grey)   (Replaces: W10164045)				$ 291.24
4	WPW10443321		Gasket, Door (white)   (Replaces: W10164043)				$ 323.86
4	WPW10436253		Gasket, Door (black)   (Replaces: W10164044)				$ 324.80
5	WPW10235367		Glide, Upper   (Replaces: W10235367)				$ 282.09
6	12924801SP		Bin, Lower		Appelez-nous	-
7	W10166742		Adapter, Bin (outer)   (Replaces: 12925403SP)				$ 88.31
8	WP12924903		Bin, Upper   (Replaces: 12924903)				$ 119.07
9	W10826788		Retainer, Glide (left)   (Replaces: 12925501SP)				$ 51.75
9	WP67006368		Retainer, Glide (right)   (Replaces: 12925502SP)				$ 173.61
10	12925404SP		Adapter, Bin (inner)				$ 40.79
11	WPW10235357		Bracket/glide Assembly   (Replaces: W10235357)			Immediately	$ 297.88
