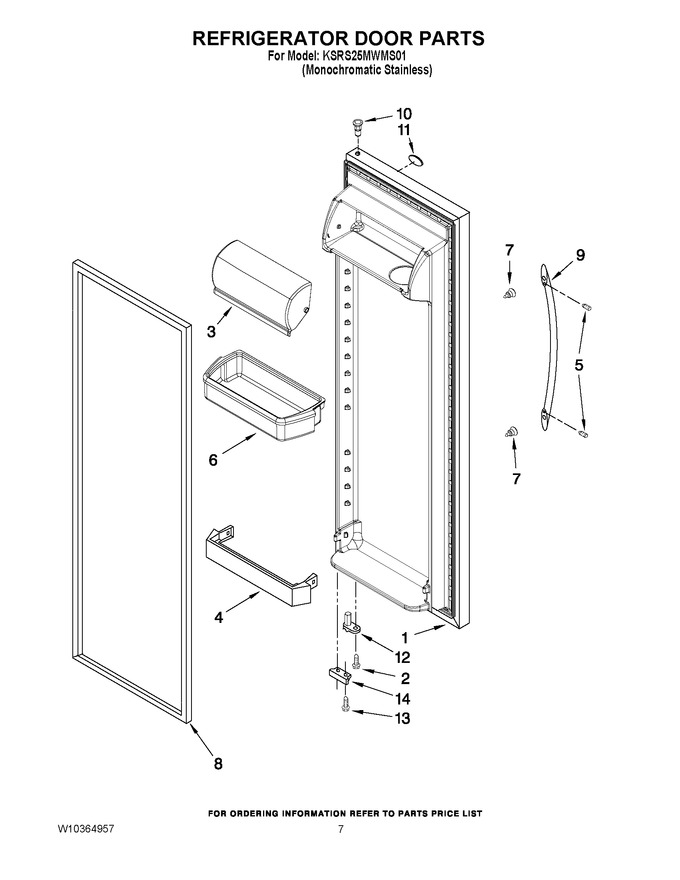

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10321331 | Refrigerator Door (includes Item No.8) (mono Stainless) |
|
- | |||||
| 2 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 3 | 2301486 | Door, Compartment |
|
- | |||||
| 4 | WP2309941 | Trivet, Shelf (Replaces: 2309941) |
|
Immediately | $ 68.69 | ||||
| 5 | W11366418 | Set Screw (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 6 | WPW10321304 | Shelf Bin (Replaces: W10321304) |
|
Immediately | $ 40.46 | ||||
| 7 | WPW10170540 | Stud, Handle (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 8 | WPW10136734 | Door Gasket, Magnetic (service) (Replaces: 2327163) |
|
$ 301.85 | |||||
| 9 | 2319727S | Handle |
|
$ 133.96 | |||||
| 10 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 7.34 | |||||
| 11 | WPW10243391 | Nameplate (Replaces: W10243391) |
|
$ 52.48 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.48 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 14 | W10185570 | Bracket, Door Stop |
|
$ 11.59 |
