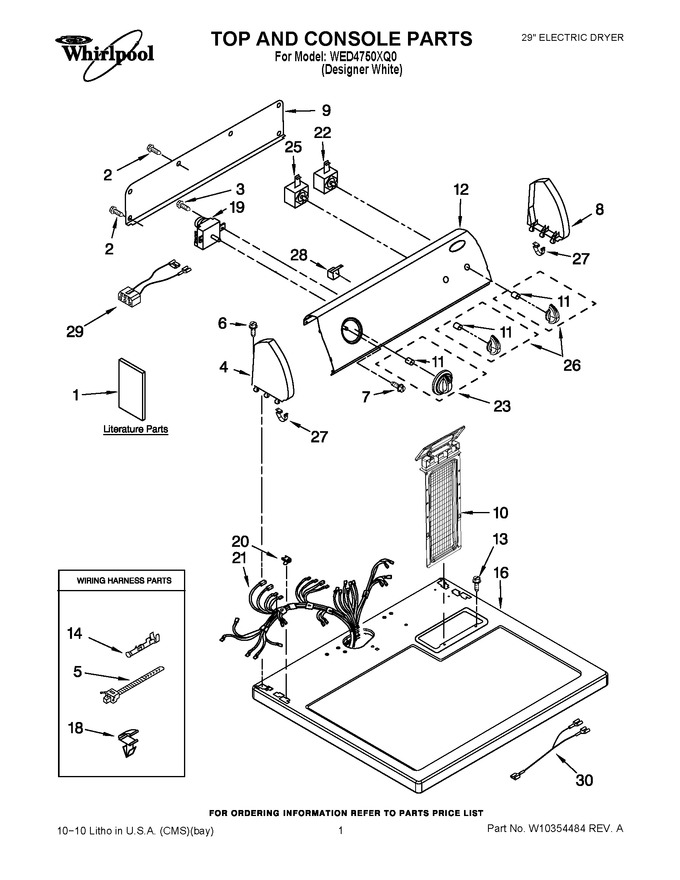

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096986		Use & Care Guide		Appelez-nous	-
1	W10096987		Installation Instructions		Appelez-nous	-
1	W10274613		Wiring Diagram		Appelez-nous	-
2	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
3	WP90767		Screw, 8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.43
4	WP8565957		Cap, End (l.h.)   (Replaces: 8566035)				$ 58.28
5	WP3391018		Cable, Tie   (Replaces: 3391018)				$ 30.09
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.36
7	3400859		Screw, Grounding   (Replaces: 8533951)				$ 12.49
8	WP8565954		Cap, End (r.h.)   (Replaces: 8566032)				$ 59.26
9	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 121.78
10	W10874409		Screen, Lint   (Replaces: 8557861)			Immediately	$ 60.31
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	W10295261		Control Panel & Bracket Assembly		Appelez-nous	-
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	WP94614		Terminal   (Replaces: 94614)				$ 7.25
16	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 314.33
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.36
19	WP8299779		Timer, 60 Hz.   (Replaces: 8299779)			Immediately	$ 345.33
20	WP357213		Nut,push-in   (Replaces: 357213)				$ 6.98
21	W10278756		Harness, Wiring		Appelez-nous	-
22	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 23.99
23	W10034750		Timer Knob Assembly				$ 28.27
25	3405152		Switch, Cycle Signal				$ 117.96
26	W10034770		Control Knob, Assembly		Appelez-nous	-
27	WP8312709		Console Clip   (Replaces: 8312709)			Immediately	$ 14.93
28	WP694419		Mini Buzzer   (Replaces: 694419)				$ 120.65
29	3401695		Jumper, Buzzer On/off		Appelez-nous	-
30	W10203571		Jumper		Appelez-nous	-
