SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts

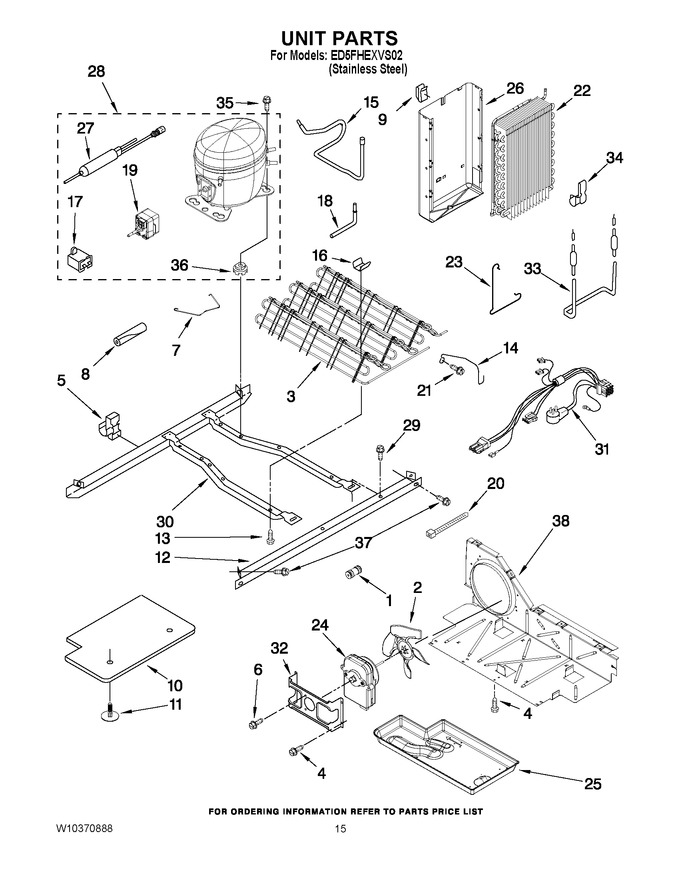

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10334458		Union   (Replaces: W10271540)				$ 20.40
2	W10156818		Fan, Blade   (Replaces: 12825802)			Immediately	$ 56.52
3	2324712		Condenser Assembly   (Replaces: W10222348)				$ 291.11
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
5	2208280		Clip, Wire		Appelez-nous	-
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.09
7	W10204187		Clip, Retaining		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 19.19
9	2155547		Cilp, Heat Shield		Appelez-nous	-
10	2304899		Unit Cover, Bottom		Appelez-nous	-
11	489396		Clip				$ 10.13
12	W10196313		Unit Mounting Rail		Appelez-nous	-
13	W11544659		Screw   (Replaces: 8281232)				$ 12.92
14	2260517		Guard, Fan		Appelez-nous	-
15	2205765		Tube, Suction				$ 36.04
16	W10683556		Clip, Condenser (2)   (Replaces: 2311725)				$ 17.44
17	WPW10662129		Capacitor (service)   (Replaces: 2264017)			Immediately	$ 52.97
18	2325479		Process Tube		Appelez-nous	-
19	W10896198		Tsd Start/protect (service)   (Replaces: 2304884)				$ 175.69
19	WPW10189190		Tsd Start/protect (production)   (Replaces: W10197427)			Immediately	$ 118.16
20	WPW10339879		Strap   (Replaces: 2263990)				$ 7.47
21	WP489478		Screw   (Replaces: 489478)				$ 7.36
22	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 343.34
23	2161324		Clamp		Appelez-nous	-
24	WP2188874		Fan, Motor   (Replaces: 2188874)			Immediately	$ 111.76
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 142.34
26	W10194475		Heat Shield		Appelez-nous	-
27	WPW10143759		Drier (service)   (Replaces: 2317845)			Immediately	$ 27.70
27	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 27.70
28	W10139462		Compressor (includes Items 17, 19, 27, & 36) (also Order 876765 Tube Kit)   (Replaces: W10120459)				$ 601.50
29	WP489427		Screw   (Replaces: 489427)				$ 7.06
30	W10196321		Unit Mounting Frame		Appelez-nous	-
31	WPW10309395		Unit, Harness (includes Power Cord)   (Replaces: 2187783)				$ 277.52
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 11.64
33	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 81.63
34	2161324		Clip		Appelez-nous	-
35	876811		Screw   (Replaces: 489373)				$ 7.01
36	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.01
36	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.57
37	489340		Screw (5)		Appelez-nous	-
38	W10332806		Air, Baffle				$ 102.82
NI	978026		Valve, Access (5/16``)			Immediately	$ 121.04
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access 1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 123.53
NI	876764		Valve, Access (3/16``)			Immediately	$ 86.33
NI	N/P		Refrigerant Charge (5.0 Oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46

    View Diagram in Separate Window       Print Part List
