SELECT A DIAGRAM

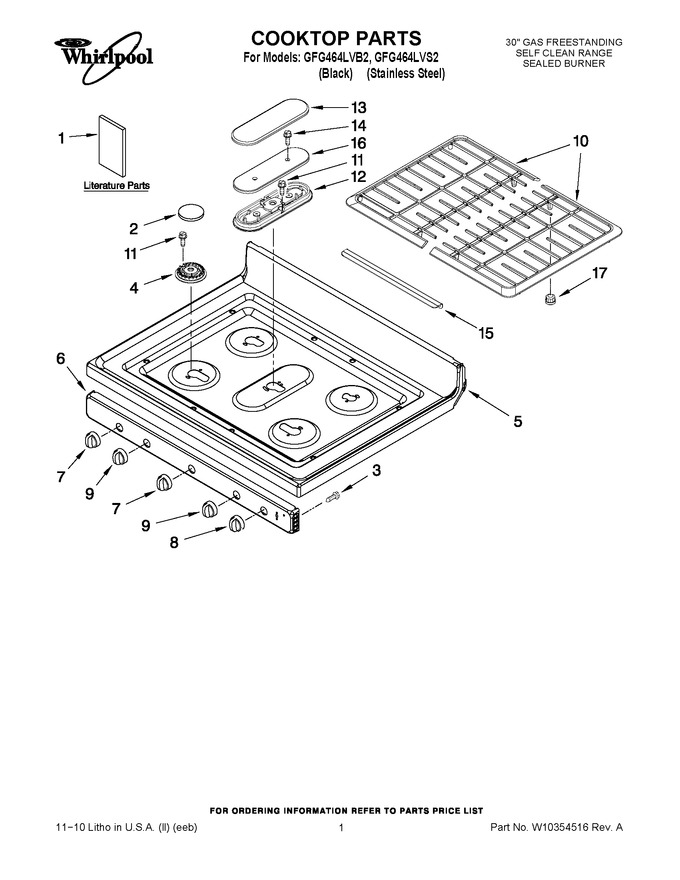

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Drawer & Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10196151		Use & Care Guide		Appelez-nous	-
1	W10198620		Tech Sheet		Appelez-nous	-
1	W10196161		Installation Instructions		Appelez-nous	-
1	9757142		Anti-tip Template (english/spanish)		Appelez-nous	-
1	9757143		Anti-tip Template (english/french)		Appelez-nous	-
1	9762761		Safer Cooking Tips		Appelez-nous	-
2	WPW10183375		Set, Burner Cap (black)   (Replaces: W10183375)				$ 139.45
3	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.16
4	WPW10406243		Burner (rr (6k))   (Replaces: 8286181)			Immediately	$ 35.17
4	WPW10406878		Burner (lf & Rf (17k))   (Replaces: 8286183)				$ 96.73
4	WPW10406283		Burner (lr & Center (9k))   (Replaces: W10194076)				$ 70.22
5	W10153559		Cooktop (black)		Appelez-nous	-
6	W10169921		Panel, Manifold (black)		Appelez-nous	-
6	W10184156		Panel, Manifold (stainless Steel)		Appelez-nous	-
7	WPW10160649		Knob, Control (black)   (Replaces: W10160649)				$ 21.80
8	WPW10134131		Knob, Accusimmer (black)   (Replaces: W10134131)				$ 22.15
9	WPW10134134		Knob, Powerburner (black)   (Replaces: W10134134)				$ 22.50
10	W10170256		Grate, Burner (full Width) (black)				$ 131.47
11	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 7.70
12	WPW10336094		Burner (center)   (Replaces: W10169577)				$ 205.03
13	WPW10171140		Cap (center) (black)   (Replaces: W10171140)				$ 151.62
14	W10217535		Screw				$ 19.73
15	W10178038		Deflector, Flue (black)		Appelez-nous	-
16	WPW10333445		Cover, Burner   (Replaces: W10169578)				$ 99.05
17	8186321		Bumper, Grate   (Replaces: 9760219)			Immediately	$ 9.54
