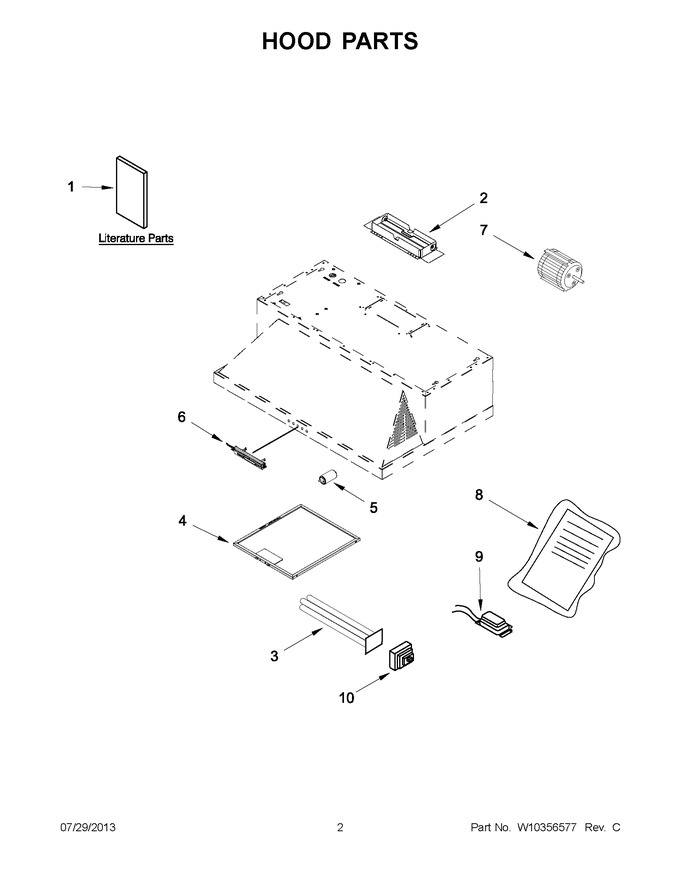

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10320576 | Use & Care Guide |
|
- | |||||
| 2 | WPW10291572 | Damper, Hood (Replaces: W10291572) |
|
$ 176.02 | |||||
| 3 | W10350862 | Bulb-light |
|
$ 74.77 | |||||
| 4 | W11246395 | Filter, Grease (Replaces: W10256662) |
|
$ 78.45 | |||||
| 5 | W10350869 | Capacitor (12 Mf) |
|
- | |||||
| 5 | W10350868 | Capacitor (15 Mf) |
|
- | |||||
| 5 | 8186677 | Capacitor (25 Mf) |
|
$ 212.19 | |||||
| 6 | WPW10350870 | Control Assembly (Replaces: W10350870) |
|
$ 88.83 | |||||
| 7 | WPW10350873 | Blower, Fan (Replaces: W10350873) |
|
$ 548.84 | |||||
| 8 | W10350874 | Hardware, Install |
|
- | |||||
| 9 | W10350895 | Ballast |
|
$ 123.96 | |||||
| 10 | W10515801 | Socket, Bulb |
|
$ 119.21 |
