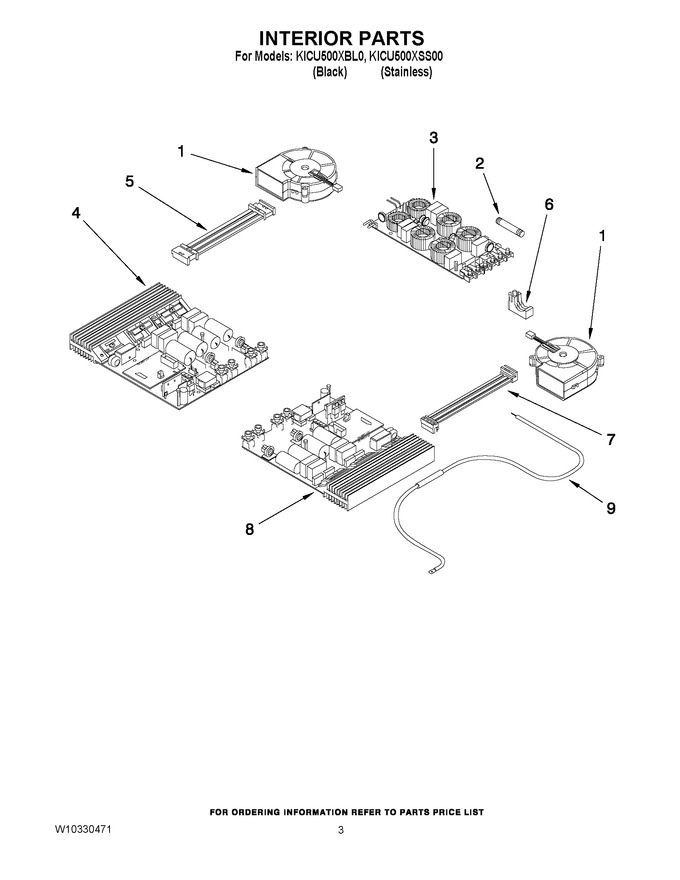

02 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10328381 | Fan, Blower (lh) |
|
Immediately | $ 324.00 | ||||
| 1 | W10328378 | Fan, Blower (rh) |
|
$ 325.92 | |||||
| 2 | WPW10328492 | Fuse (Replaces: W10328492) |
|
Immediately | $ 114.75 | ||||
| 3 | W10328481 | Control-elec (rh) |
|
$ 185.06 | |||||
| 4 | W10328474 | Power Unit (lh) |
|
$ 369.01 | |||||
| 5 | W10328395 | Harness, Wire User Interface |
|
$ 95.03 | |||||
| 6 | W10328401 | Bracket, Mounting Conduit |
|
$ 232.85 | |||||
| 7 | W11428265 | Harness, Wire User Interface (Replaces: W10328396) |
|
$ 194.63 | |||||
| 8 | WPW10328487 | Power Unit (rh) (Replaces: W10328487) |
|
$ 391.06 | |||||
| 9 | WPW10328397 | Harness, Wire Main (Replaces: W10328397) |
|
Immediately | $ 152.00 | ||||
| NI | W10328499 | Kit, Mounting Marble Countertop |
|
$ 249.13 | |||||
| NI | W10310006A | Adhesive, Marble Countertop (Replaces: W10310006) |
|
$ 204.11 |
