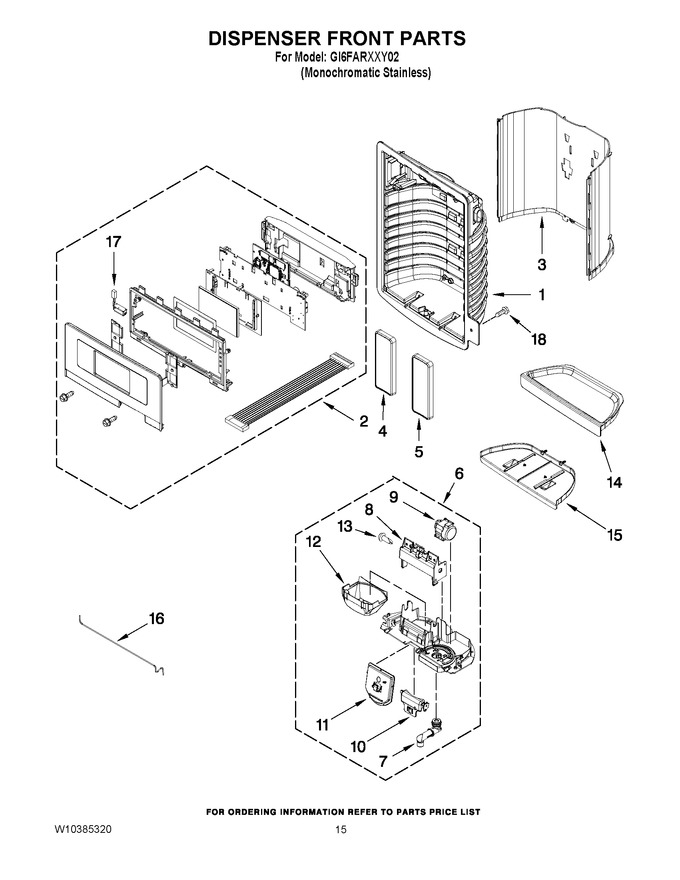

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11184112		Ui Assembly   (Replaces: W10337911)				$ 366.06
3	W11045978		False, Wall, Dispenser (stainless)   (Replaces: W10299897)				$ 81.30
4	WPW10368730		Pad, Ice (stainless)   (Replaces: W10334801)			Immediately	$ 287.52
5	WPW10368730		Pad, Water (stainless)   (Replaces: W10334825)			Immediately	$ 287.52
6	WPW10353552		Separator Assy.   (Replaces: W10278973)				$ 185.29
7	W11227371		Spigot   (Replaces: 2316647)				$ 122.74
8	W10174827		Bracket, Ice Door				$ 68.78
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 96.84
10	W10499850		Support, Ice Door   (Replaces: W10174809)				$ 94.20
11	W10346235		Door, Ice   (Replaces: W10174811)				$ 153.29
12	W10499850		Guide, Ice   (Replaces: W10174808)				$ 94.20
13	W10174818		Clip		Appelez-nous	-
14	W11192301		Tray, Dispenser (stainless)   (Replaces: W10299895)				$ 59.24
15	WPW10267863		Slide Tray, Dispenser (stainless)   (Replaces: W10267863)				$ 65.90
16	W10296451		Tube, Water				$ 53.54
17	W11290115		Led   (Replaces: W10238083)				$ 76.01
18	WPW10273971		Screw   (Replaces: W10273971)			Immediately	$ 6.80
