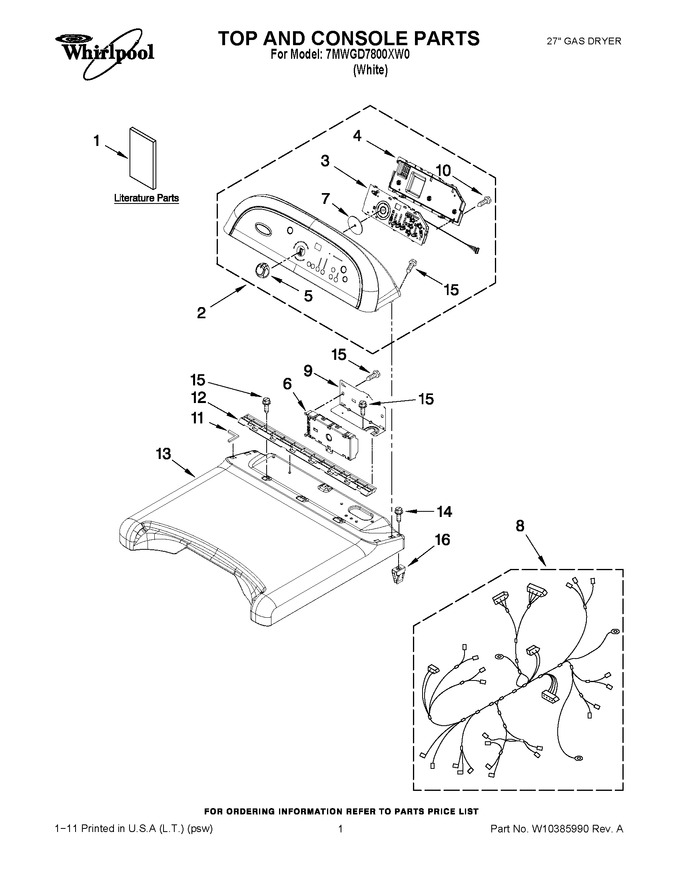

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8557891 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10339517		Guide, Use & Care		Appelez-nous	-
1	W10339513		Installation Instruction		Appelez-nous	-
1	W10301481		Tech, Sheet		Appelez-nous	-
2	W10298643		Console Assembly				$ 341.68
3	WPW10298625		Assembly, User Interface   (Replaces: W10298625)				$ 266.60
4	8564265		Cover, Ui-assembly				$ 128.34
5	WPW10211335		Knob, Assembly   (Replaces: W10211335)				$ 53.78
6	W10294317		Control Electronic				$ 326.56
7	8572039		Seal, User Interface		Appelez-nous	-
8	W10319805		Harness, Wiring Main		Appelez-nous	-
9	W10211337		Bracket, Machinecontroller		Appelez-nous	-
10	WP4449745		Screw   (Replaces: W10003770)				$ 7.18
11	W10185554		Foam, Top		Appelez-nous	-
12	8558863		Bracket, Console				$ 33.78
13	W10211339		Top		Appelez-nous	-
14	W10131402		Screw, 8-18 X 1.370		Appelez-nous	-
15	WP33001882		Screw, 8-18 X 1/2   (Replaces: 337686)				$ 75.34
16	W10112673		Clip, Console				$ 8.78
