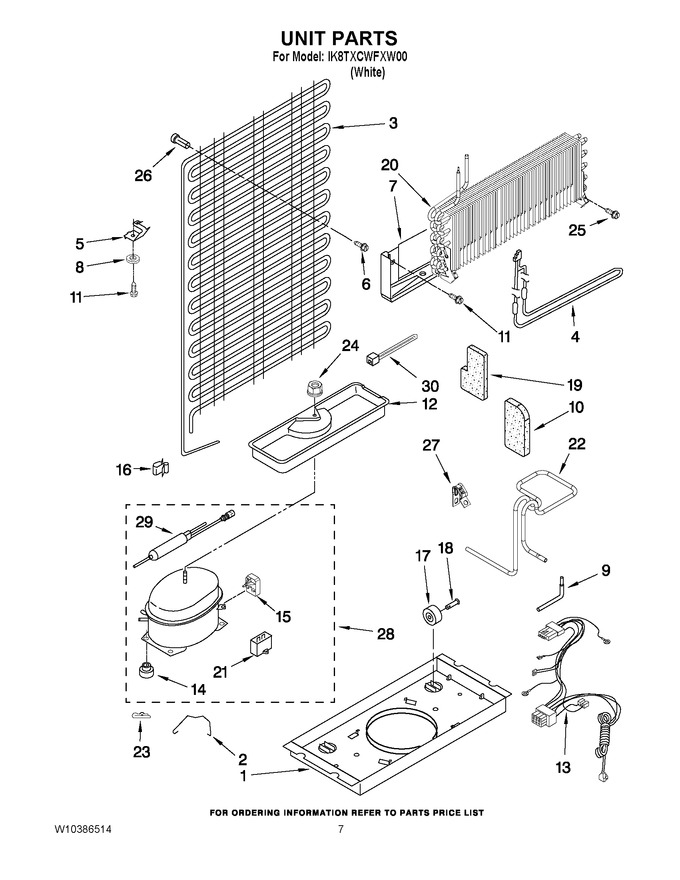

SELECT A DIAGRAM

01 - Cabinet Part


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10222451		Support Plate, Compressor				$ 32.07
2	2212996		Strap Bale				$ 11.45
3	WPW10219349		Condenser   (Replaces: W10219349)				$ 261.63
4	WP2263749		Heater, Defrost   (Replaces: 2176942)			Immediately	$ 84.33
5	4386951		Clip, Condensor   (Replaces: 2172892)		Appelez-nous	-
6	8533892		Screw		Appelez-nous	-
7	2319224		Heat Shield				$ 116.21
8	8526417		Washer   (Replaces: VS611)				$ 13.18
9	W11676464		Tube, Process   (Replaces: VS20001)				$ 97.75
10	2262192		Wedge-evaporator		Appelez-nous	-
11	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
12	2201801		Evaporator Tray				$ 78.52
13	W10151654		Wire Assy. Unit				$ 277.52
14	WPW10169124		Grommet (service)   (Replaces: 2264447)				$ 6.80
15	W10805623		Start-device, Combination (start Relay And Overload) (service)   (Replaces: W10249964)				$ 119.66
15	W10805623		Start Device, Combination (start Relay And Overload) (production)   (Replaces: W10330836)				$ 119.66
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 28.85
18	WP2264756		Axle, Rivet   (Replaces: 2264756)				$ 6.80
19	2262191		Wedge-evaporator		Appelez-nous	-
20	WP2263920		Evaporator Assy.   (Replaces: 2263920)			Immediately	$ 299.90
21	WPW10662129		Capacitator (service)   (Replaces: 2169373)			Immediately	$ 52.97
21	WPW10662129		Capacitator (production)   (Replaces: 2264017)			Immediately	$ 52.97
22	W10289688		Tube, Discharge (incl. Pre Cooler)		Appelez-nous	-
23	24364001		Clip, Compressor		Appelez-nous	-
24	285002		Hex Nut   (Replaces: 489153)				$ 11.57
25	WP489478		Screw   (Replaces: 489478)				$ 7.36
26	2258452		Spacer, Condenser		Appelez-nous	-
27	549193		Clamp, Cord				$ 12.65
28	W10285060		Compressor (includes 14, 15, 21 & 29) (also Order 482801 Installation Kit & 876765 Tube Kit)   (Replaces: W10252075)				$ 664.70
29	W10843121		Drier (production)   (Replaces: W10190413)			Immediately	$ 51.42
29	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 27.70
30	WPW10339879		Strap   (Replaces: 2263990)				$ 7.47
NI	978026		Valve, Access (5/16``)			Immediately	$ 121.04
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access 1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 123.53
NI	876764		Valve, Access (3/16``)			Immediately	$ 86.33
NI	N/P		Refrigerant Charge (r134a)		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
