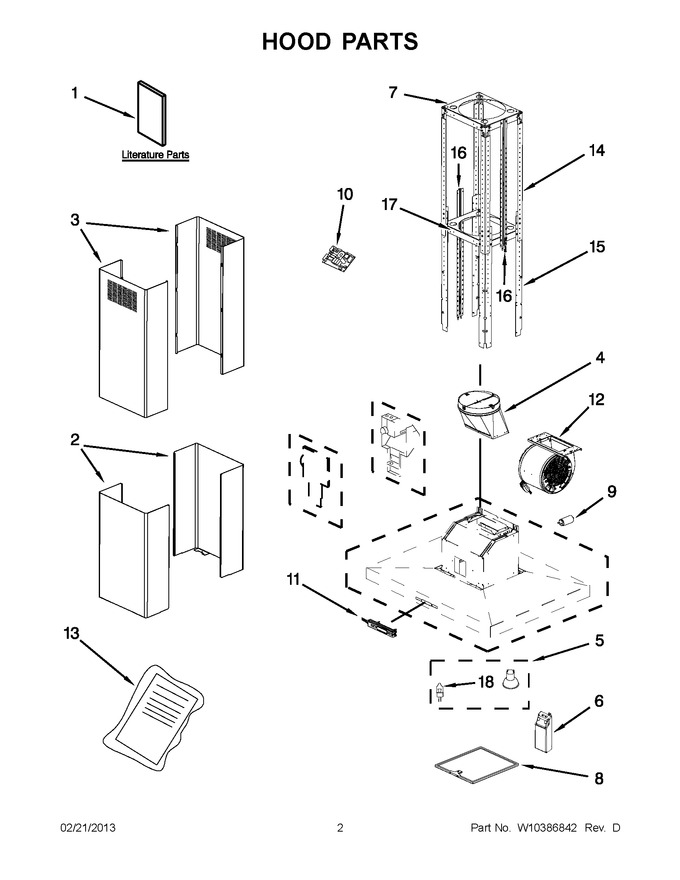

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10321799 | Literature Parts (use & Care Guide) |
|
- | |||||
| 2 | W11321565 | Chimney, Lower (Replaces: W10351830) |
|
$ 358.34 | |||||
| 3 | W10351831 | Chimney, Upper |
|
$ 301.22 | |||||
| 4 | WPW10313841 | Damper, Hood (Replaces: W10313841) |
|
$ 179.54 | |||||
| 5 | WP8186678 | Bulb, Light (Replaces: 8186678) |
|
$ 73.21 | |||||
| 6 | W11186486 | Transformer (110-127v,20-6w) (Replaces: 8186686) |
|
Immediately | $ 206.24 | ||||
| 7 | W10297052 | Support, Horizontal Upper |
|
- | |||||
| 8 | W10351855A | Filter, Grease (Replaces: W10351855) |
|
$ 188.92 | |||||
| 9 | 8186677 | Capacitor |
|
$ 212.19 | |||||
| 10 | WPW10291604 | Board, Power (Replaces: W10291604) |
|
$ 284.26 | |||||
| 11 | W10351858 | Control, Electronic |
|
$ 406.41 | |||||
| 12 | WPW10291602 | Fan Assembly (Replaces: W10291602) |
|
Immediately | $ 583.32 | ||||
| 13 | W10351862 | Hardware, Installation |
|
$ 35.53 | |||||
| 14 | W10351906 | Support, Upper Vertical |
|
- | |||||
| 15 | W10351905 | Support, Lower Vertical |
|
- | |||||
| 16 | W10293054 | Support, Vertical Duct Cover |
|
$ 30.63 | |||||
| 17 | W10293065 | Support, Horizontal Lower |
|
- | |||||
| 18 | WPW10298151 | Bulb, Halogen (Replaces: W10298151) |
|
Immediately | $ 26.35 | ||||
| NI | W10272078 | Accessories, Chimney Extension Kit |
|
$ 1,005.63 | |||||
| NI | W10272068 | Accessories, Charcoal Filter Kit (for Non-vented Installations Only) |
|
Immediately | $ 64.00 | ||||
| NI | W10272061 | Accessories, Kit, Recirculation |
|
$ 273.95 | |||||
| NI | W10446915 | Accessories, 6`` Makeup Air Kit |
|
$ 316.52 |
