SELECT A DIAGRAM

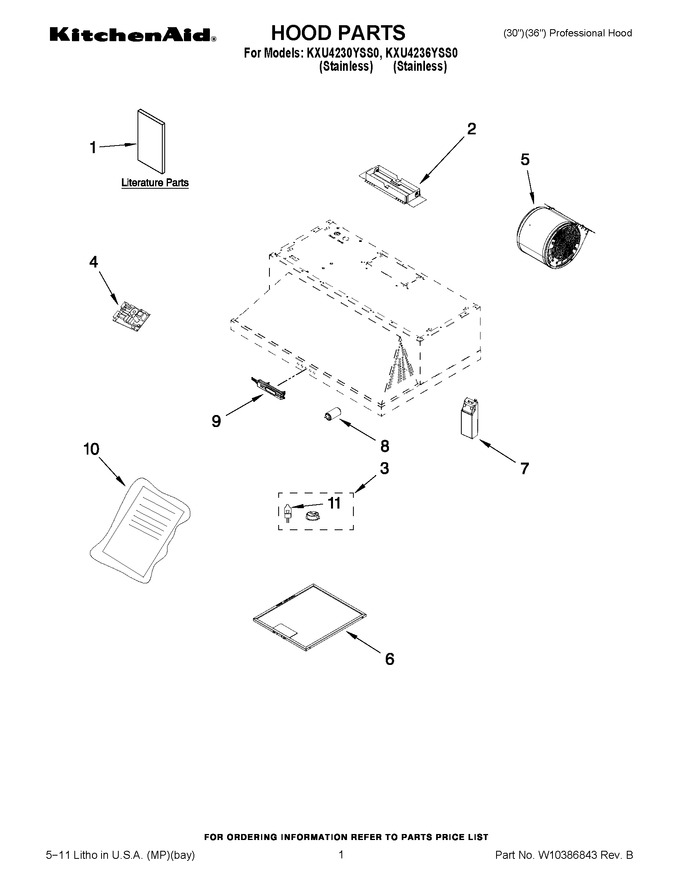

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10320581 | Use & Care Guide |
|
- | |||||
| 2 | WPW10291572 | Damper Assembly (Replaces: W10291572) |
|
$ 176.02 | |||||
| 3 | WP8186678 | Bulb Assembly (Replaces: 8186678) |
|
$ 73.21 | |||||
| 4 | WPW10291604 | Power Board (Replaces: W10291604) |
|
$ 284.26 | |||||
| 5 | W11106377 | Fan Assembly (Replaces: W10294501) |
|
Immediately | $ 661.19 | ||||
| 6 | W10351855A | Grease Filter (Replaces: W10351855) |
|
$ 188.92 | |||||
| 7 | W11186486 | Transformer (Replaces: 8186686) |
|
Immediately | $ 206.24 | ||||
| 8 | 8186677 | Capacitor |
|
$ 212.19 | |||||
| 9 | W10351858 | Control, Elect. |
|
$ 406.41 | |||||
| 10 | W10351859 | Install Hardware |
|
- | |||||
| 11 | WPW10298151 | Bulb, Halogen (Replaces: W10298151) |
|
Immediately | $ 26.35 | ||||
| NI | W10272068 | Charcoal Filter Kit (not Illustrated) |
|
Immediately | $ 64.00 |
