SELECT A DIAGRAM

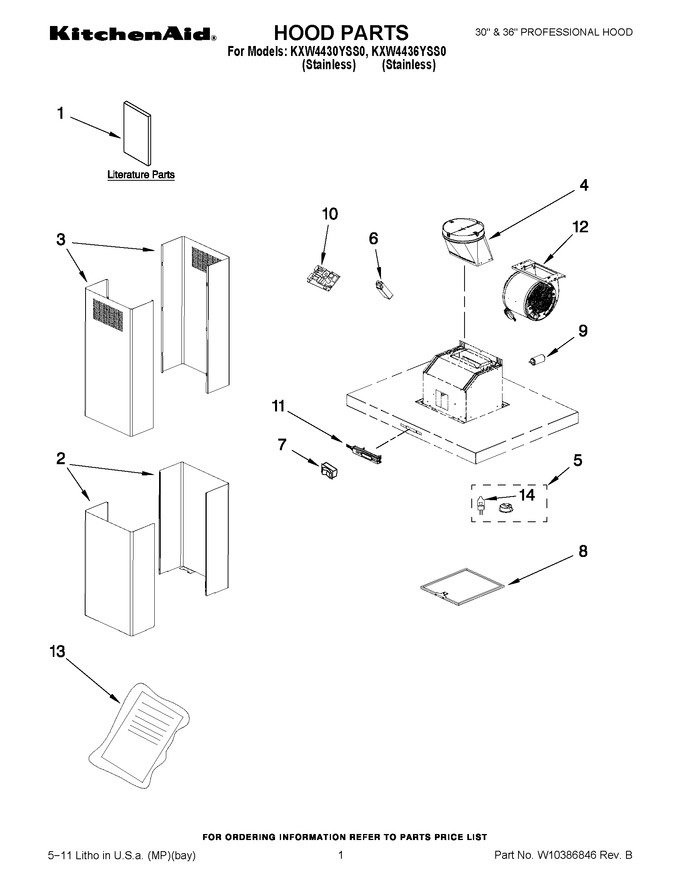

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10322990 | Use & Care Guide |
|
- | |||||
| 2 | W11321566 | Chimney, Lower (Replaces: W10291599) |
|
$ 360.81 | |||||
| 3 | W11328694 | Chimney, Upper (Replaces: W10296312) |
|
Immediately | $ 356.45 | ||||
| 4 | WPW10313841 | Damper Assembly (Replaces: W10313841) |
|
$ 179.54 | |||||
| 5 | WP8186678 | Bulb Assembly (Replaces: 8186678) |
|
$ 73.21 | |||||
| 6 | W11186486 | Transformer (Replaces: 8186686) |
|
Immediately | $ 206.24 | ||||
| 7 | W10351866 | Rocker Switch |
|
- | |||||
| 8 | W10351855A | Filter, Grease (Replaces: W10351855) |
|
$ 188.92 | |||||
| 9 | 8186677 | Capacitor |
|
$ 212.19 | |||||
| 10 | WPW10291604 | Board, Power (Replaces: W10291604) |
|
$ 284.26 | |||||
| 11 | W10351858 | Control, Elect. |
|
$ 406.41 | |||||
| 12 | WPW10291602 | Fan Assembly (Replaces: W10291602) |
|
Immediately | $ 583.32 | ||||
| 13 | W10351863 | Hardware, Install |
|
- | |||||
| 14 | WPW10298151 | Bulb, Halogen (Replaces: W10298151) |
|
Immediately | $ 26.35 | ||||
| NI | W10272076 | Chimney Extension Kit |
|
$ 611.22 | |||||
| NI | W10285061 | Recirculation Kit |
|
$ 244.87 | |||||
| NI | W10285062 | Charcoal Filter |
|
$ 271.78 |
