Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8303871 Installation Instructions Appelez-nous -
1 8302068 Tech Sheet Appelez-nous -
1 9762761 Tips, Safe Cooking (english) Appelez-nous -
1 W10162170 Use & Care Guide Appelez-nous -
2 W10339501 Trim, Side Right (white) Special Order $ 93.26

2 W10339499 Trim, Side Right (black) Special Order $ 90.94

2 W10339503 Trim, Side Right (biscuit) Appelez-nous -
2 WPW10339500 Trim, Side Left (black)   (Replaces: W10339500) Special Order $ 184.32

2 WPW10339502 Trim, Side Left (white)   (Replaces: W10339502) Special Order $ 115.88

2 W10339504 Trim, Side Left (biscuit) Appelez-nous -
3 4449845 Support, Bracket Appelez-nous -
4 4448520 Bumper, Door Special Order $ 20.03

5 WP3400832 Screw   (Replaces: 3400832) In-Stock Immediately $ 7.36

6 WP4455605 Receiver, Hinge (left)   (Replaces: 4455605) In-Stock Immediately $ 114.93

6 WP4455606 Receiver, Hinge (right)   (Replaces: 4455606) In-Stock Immediately $ 118.57

7 4455863 Chassis, Top Special Order $ 105.84

8 W10378011 Assembly, Bottom Trim (black) Appelez-nous -
8 W10378034 Assembly, Bottom Trim (white) Appelez-nous -
8 W10378245 Assembly, Bottom Trim (biscuit) Appelez-nous -
9 W10861715 Tube, Vent   (Replaces: 4452159) Special Order $ 110.21

10 W10067870 Lens, Light Special Order $ 65.50

11 WPW10734065 Assembly, Light   (Replaces: W10009930) Special Order $ 91.31

12 WP4173175 Bulb, Light   (Replaces: 4452166) In-Stock Immediately $ 49.04

13 WP4451747 Cover, Back   (Replaces: 4451747) Special Order $ 135.06

14 9760754 Frame, Front Special Order $ 119.39

15 W10203263 Gasket, Door Appelez-nous -
16 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.43

17 WP4449040 Screw   (Replaces: 4449040) Special Order $ 6.78

18 4452152 Bracket, Bottom Vent Special Order $ 31.66

19 4451476 Support, Insulation Appelez-nous -
20 4450935 Plug, Door Appelez-nous -
21 WP4448933 Gasket, Retainer   (Replaces: 4448933) Special Order $ 8.37

22 4451664 Assembly, Fan And Bracket Appelez-nous -
23 WP4449154 Screw   (Replaces: 4449154) Special Order $ 7.34

24 WP4449743 Screw   (Replaces: 4449743) Special Order $ 6.80

25 W10782197 Side, Panel   (Replaces: 4455641) Special Order $ 135.62

26 4452232 Back, Chassis Appelez-nous -
27 N/P Liner, Oven (not Serviceable) Appelez-nous -
28 W11233072 Screw   (Replaces: 3196176) In-Stock Immediately $ 13.25

29 WPW10131825 Sensor   (Replaces: W10131825) In-Stock Immediately $ 94.50

30 9760675 Deflector, Vent Special Order $ 76.62

31 WP4451354 Fuse - Thermal   (Replaces: 4451354) Special Order $ 40.95

32 4450525 Base, Chassis Appelez-nous -
NI N/P Following Parts Not .illustrated Appelez-nous -
NI WP4449314 Insulation, Wrap   (Replaces: 4449314) Special Order $ 170.68

NI WP4450363 Insulation, Back   (Replaces: 4450363) Special Order $ 170.30

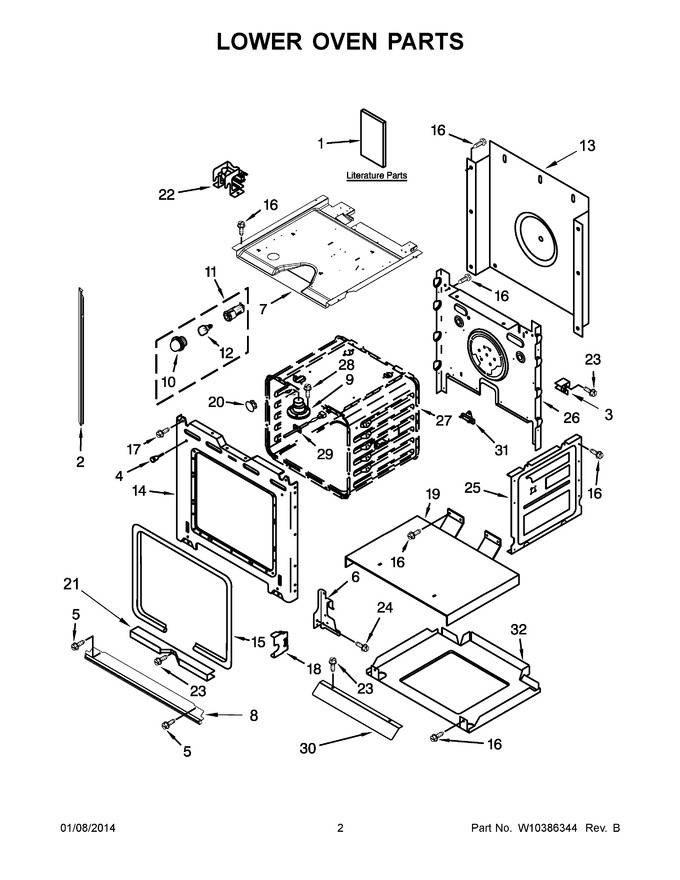

    View Diagram in Separate Window     Print Icon   Print Part List
