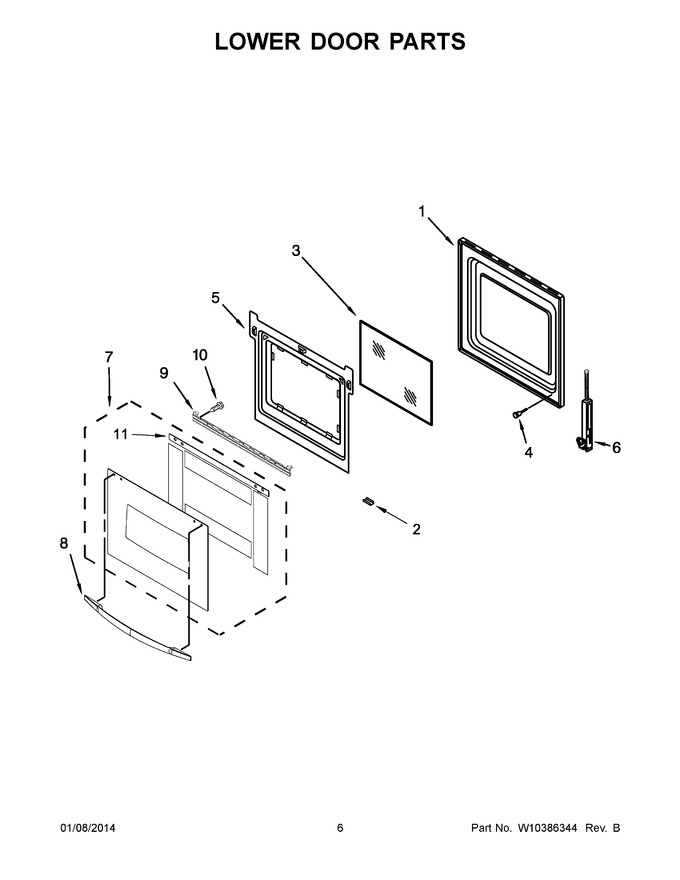

04 - Lower Door Parts


05 - Upper Door Parts


06 - Internal Oven Parts


07 - Control Panel Parts


08 - Top Venting Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8303698		Liner, Door   (Replaces: 8303698)				$ 316.69
2	W10158497		Clip, Retainer (stainless)				$ 5.65
2	W10318996		Clip, Retainer (biscuit)		Appelez-nous	-
2	W10318997		Clip, Retainer (white)		Appelez-nous	-
2	W10318998		Clip, Retainer (black)		Appelez-nous	-
3	WP4449247		Glass, Inner   (Replaces: 4449247)				$ 165.87
4	4448520		Bumper, Door				$ 20.03
5	4457130		Retainer, Glass		Appelez-nous	-
6	WP9760563		Hinge, Door (right)   (Replaces: 9760563)				$ 84.29
6	9760564		Hinge, Door (left)		Appelez-nous	-
7	8303312		Assembly, Door Glass (stainless)		Appelez-nous	-
7	8303340		Assembly, Door Glass (biscuit)		Appelez-nous	-
7	8303328		Assembly, Door Glass (black)		Appelez-nous	-
7	8303337		Assembly, Door Glass (white)		Appelez-nous	-
8	W10415733		Handle, Door (biscuit)		Appelez-nous	-
8	W10415732		Handle, Door (white)		Appelez-nous	-
8	W10415731		Handle, Door (black)		Appelez-nous	-
9	W10136471		Bracket, Handle		Appelez-nous	-
10	W10276642		Screw   (Replaces: 4451040)				$ 5.77
11	8303876		Seal, Door Top		Appelez-nous	-
