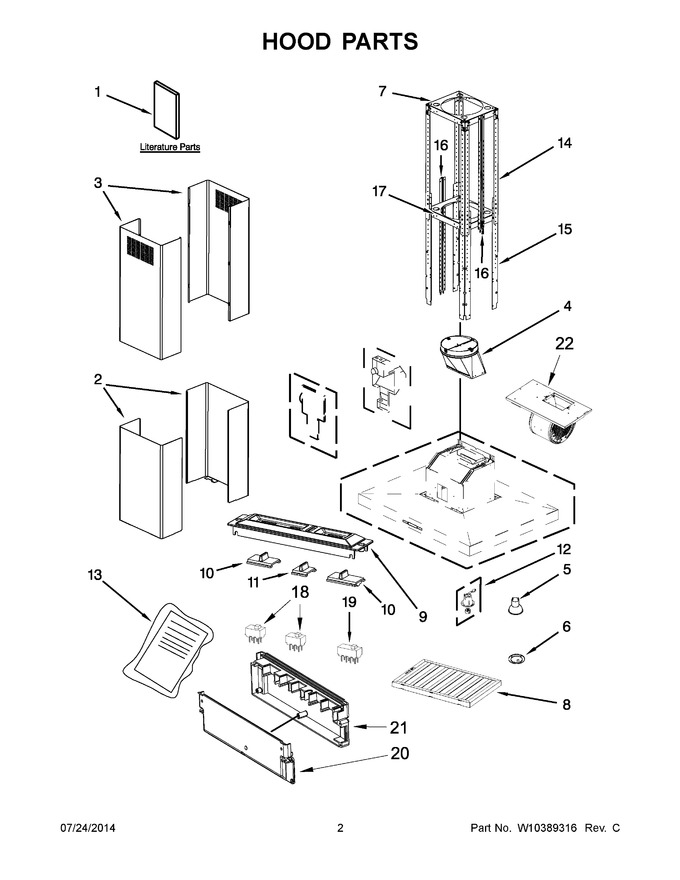

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10331010		Use & Care Guide		Appelez-nous	-
2	W10351942		Chimney, Lower		Appelez-nous	-
3	W10351941		Chimney, Upper		Appelez-nous	-
4	W11156393		Assembly, Damper   (Replaces: W10351926)				$ 192.85
5	WPW10291579		Bulb, Light   (Replaces: W10291579)			Immediately	$ 186.21
6	W10351924		Bezel, Lamp				$ 177.83
7	W10297057		Bracket, Mounting		Appelez-nous	-
8	W10351892		Filter, Grease (36" Model Only)				$ 242.68
9	W11387938		Panel, Switch   (Replaces: W10370649)			Immediately	$ 150.76
10	W11569415		Switch, Slide   (Replaces: W10370625)			Immediately	$ 27.28
11	W11662407		Switch, Slider   (Replaces: W10351911)			Immediately	$ 38.09
12	WPW10370558		Socket, Light   (Replaces: W10370558)				$ 78.69
13	W10351936		Hardware, Install		Appelez-nous	-
14	W10351939		Support, Upper Vertical		Appelez-nous	-
15	W10351938		Support, Lower Vertical		Appelez-nous	-
16	W10351940		Support, Upper Duct Cover		Appelez-nous	-
17	W10297056		Bracket, Mounting				$ 128.43
18	W10853393		Switch, Rocker (motor)   (Replaces: W10351916)			Immediately	$ 207.34
19	W11193832		Switch, Rocker (on/off)   (Replaces: W10351915)				$ 194.04
20	W10721963		Cover, Switch Housing				$ 118.12
21	W10721964		Housing, Switch				$ 157.29
22	N/P		Motor, Blower (not Included, See Accessories)		Appelez-nous	-
8A	WPW10351929		Filter, Grease (48" Model Only)   (Replaces: W10351929)				$ 188.92
NI	W10352732		Accessories, Chimney Extension Kit		Appelez-nous	-
NI	W11636054		Accessories, 600 Cfm Internal Blower Motor   (Replaces: W10294006)			Immediately	$ 744.83
NI	W11499036		Accessories, 1200 Cfm Internal Blower Motor   (Replaces: W10294026)			Immediately	$ 786.77
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
