SELECT A DIAGRAM

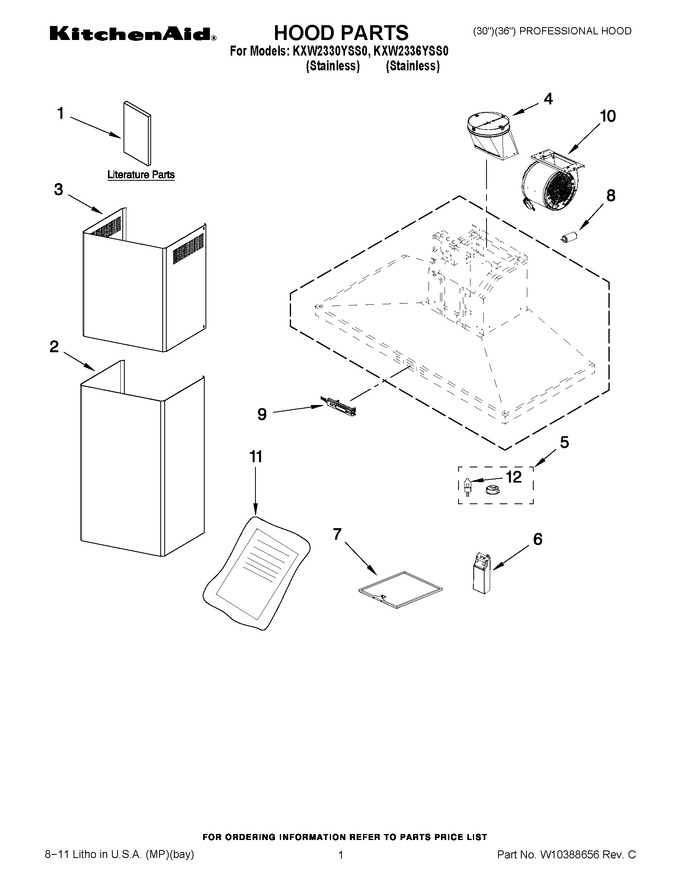

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10322991 | Use & Care Guide |
|
- | |||||
| 2 | W11417192 | Chimney, Lower (Replaces: W10350864) |
|
$ 338.23 | |||||
| 3 | W11417192 | Chimney, Upper (Replaces: W10350865) |
|
$ 338.23 | |||||
| 4 | WPW10313841 | Damper Assembly (Replaces: W10313841) |
|
$ 179.54 | |||||
| 5 | WP8186678 | Bulb Assembly (Replaces: 8186678) |
|
$ 73.21 | |||||
| 6 | W11186486 | Transformer (Replaces: 8186686) |
|
Immediately | $ 206.24 | ||||
| 7 | W10169961A | Filter, Grease (Replaces: W10169961) |
|
Immediately | $ 37.65 | ||||
| 8 | W10256657 | Capacitor |
|
Immediately | $ 84.93 | ||||
| 9 | W10351825 | Switch, Push Button |
|
$ 372.36 | |||||
| 10 | WPW10351824 | Fan Assembly (Replaces: W10351824) |
|
$ 563.66 | |||||
| 11 | W10351826 | Hardware, Install |
|
$ 41.77 | |||||
| 12 | WPW10298151 | Bulb, Halogen (Replaces: W10298151) |
|
Immediately | $ 26.35 | ||||
| NI | W10337357 | Chimney Extension Kit |
|
$ 405.95 | |||||
| NI | W11430940 | Recirculation Kit (Replaces: W10349327) |
|
Immediately | $ 137.92 | ||||
| NI | W10412939 | Charcoal Filter Kit (Replaces: W10294730) |
|
Immediately | $ 66.98 |
