SELECT A DIAGRAM

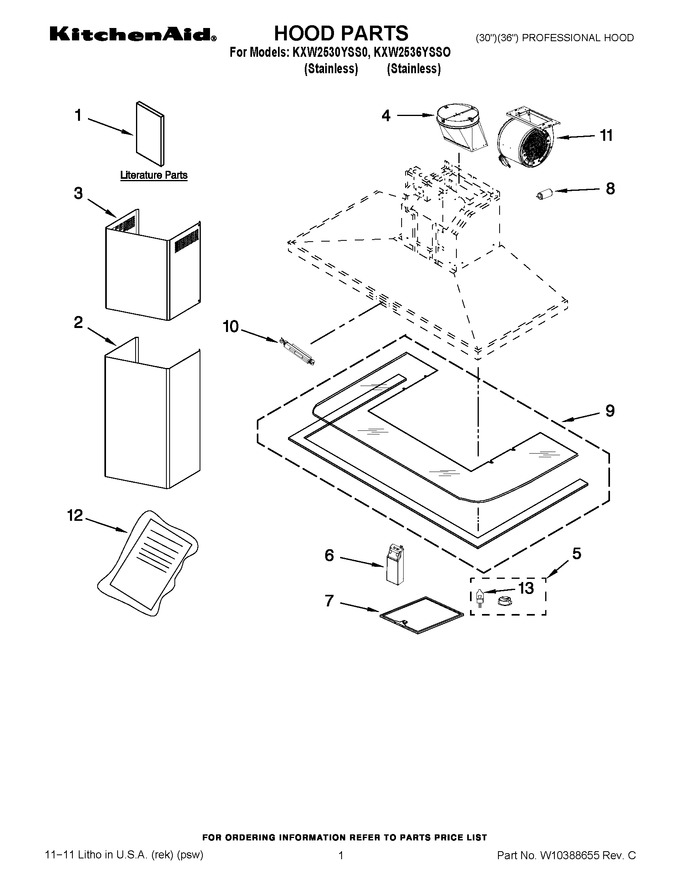

01 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10331005 | Use & Care Guide |
|
- | |||||
| 2 | W11590865 | Chimney, Lower (Replaces: W10313840) |
|
$ 350.33 | |||||
| 3 | W11590865 | Chimney, Upper (Replaces: W10313839) |
|
$ 350.33 | |||||
| 4 | WPW10313841 | Damper Assembly (Replaces: W10313841) |
|
$ 179.54 | |||||
| 5 | WP8186678 | Bulb Assembly (Replaces: 8186678) |
|
$ 73.21 | |||||
| 6 | W11186486 | Transformer (Replaces: 8186686) |
|
Immediately | $ 206.24 | ||||
| 7 | W10169961A | Filter, Grease (Replaces: W10169961) |
|
Immediately | $ 37.65 | ||||
| 8 | W10256657 | Capacitor |
|
Immediately | $ 84.93 | ||||
| 9 | W10351829 | Glass Assembly (36``) |
|
- | |||||
| 9 | W10351828 | Glass Assembly (30``) |
|
$ 220.05 | |||||
| 10 | W10351825 | Switch, Push Button |
|
$ 372.36 | |||||
| 11 | WPW10291577 | Fan Assembly (Replaces: W10291577) |
|
$ 485.51 | |||||
| 12 | W10351827 | Hardware, Install |
|
$ 44.06 | |||||
| 13 | WPW10298151 | Bulb, Halogen (Replaces: W10298151) |
|
Immediately | $ 26.35 | ||||
| NI | W10294735 | Chimney Extension Kit |
|
$ 824.95 | |||||
| NI | W11430939 | Recirculation Kit (Replaces: W10294733) |
|
$ 137.92 | |||||
| NI | W10412939 | Charcoal Filter Kit (Replaces: W10294730) |
|
Immediately | $ 66.98 |
