01 - Cover Sheet

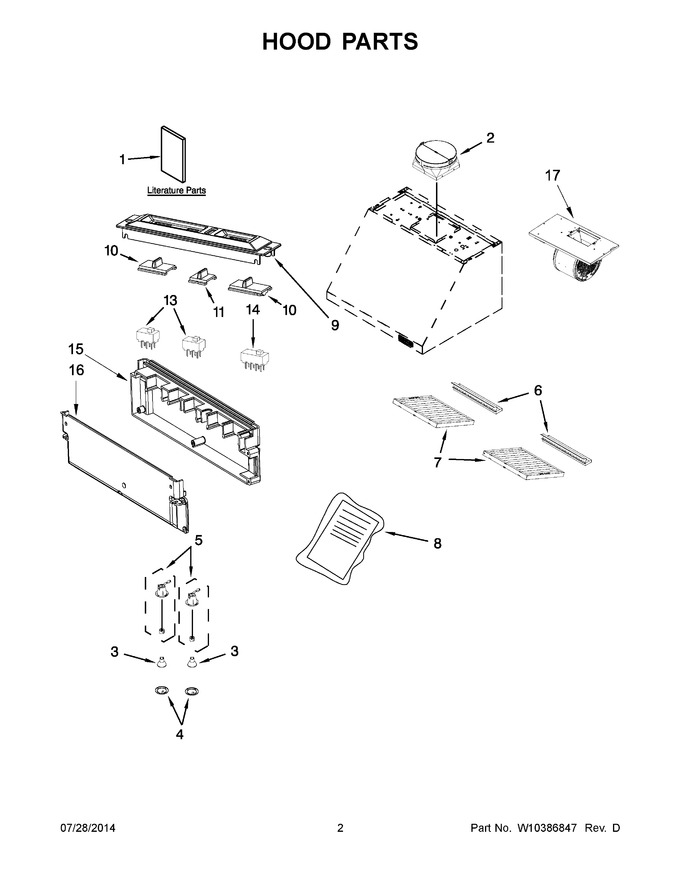

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10331007 | Use & Care Guide |
|
- | |||||
| 2 | W11156393 | Assembly, Damper (Replaces: W10351926) |
|
$ 192.85 | |||||
| 3 | WPW10291579 | Bulb, Light (Replaces: W10291579) |
|
Immediately | $ 186.21 | ||||
| 4 | W10351924 | Bezel, Lamp |
|
$ 177.83 | |||||
| 5 | WPW10370558 | Socket, Light (Replaces: W10370558) |
|
$ 78.69 | |||||
| 6 | W10294003 | Tray, Grease (30" Model Only) |
|
$ 299.65 | |||||
| 7 | W10351890 | Filter, Grease (30" Model Only) |
|
$ 106.13 | |||||
| 8 | W10351930 | Hardware, Install |
|
$ 65.82 | |||||
| 9 | W11387938 | Panel, Switch (Replaces: W10370649) |
|
Immediately | $ 150.76 | ||||
| 10 | W11569415 | Switch, Slide (Replaces: W10370625) |
|
Immediately | $ 27.28 | ||||
| 11 | W11662407 | Switch, Slider (Replaces: W10351911) |
|
Immediately | $ 38.09 | ||||
| 13 | W10853393 | Switch, Rocker (motor) (Replaces: W10351916) |
|
Immediately | $ 207.34 | ||||
| 14 | W11193832 | Switch, Rocker (on/off) (Replaces: W10351915) |
|
$ 194.04 | |||||
| 15 | W10721964 | Housing, Switch |
|
$ 157.29 | |||||
| 16 | W10721963 | Cover, Switch Housing |
|
$ 118.12 | |||||
| 17 | N/P | Motor, Blower (not Included, See Accessories) |
|
- | |||||
| 6A | W10294011 | Tray, Grease (36" Model Only) |
|
$ 287.84 | |||||
| 6B | W10294022 | Tray, Grease (48" Model Only) |
|
$ 318.49 | |||||
| 7A | W10351892 | Filter, Grease (36" Model Only) |
|
$ 242.68 | |||||
| 7B | WPW10351929 | Filter, Grease (48" Model Only) (Replaces: W10351929) |
|
$ 188.92 | |||||
| NI | W10352735 | Accessories, Kit, Backsplash (36" Without Shelf) |
|
$ 655.15 | |||||
| NI | W10352736 | Accessories, Kit, Backsplash (48" Without Shelf) |
|
$ 621.74 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11636054 | Accessories, 600 Cfm Internal Blower Motor (Replaces: W10294006) |
|
Immediately | $ 744.83 | ||||
| NI | W11499036 | Accessories, 1200 Cfm Internal Blower Motor (Replaces: W10294026) |
|
Immediately | $ 786.77 | ||||
| NI | W10272079 | Accessories, Cover, Duct (30" Model Only) |
|
$ 211.98 | |||||
| NI | W10272080 | Accessories, Cover, Duct (36" Model Only) |
|
$ 297.32 | |||||
| NI | W10272081 | Accessories, Cover, Duct (48" Model Only) |
|
$ 319.30 | |||||
| NI | W10285447 | Accessories, Kit, Backsplash (30" With Shelves) |
|
$ 448.47 | |||||
| NI | W10285448 | Accessories, Kit, Backsplash (36" With Shelves) |
|
Immediately | $ 417.54 | ||||
| NI | W10285449 | Accessories, Kit, Backsplash (48" With Shelves) |
|
$ 473.10 | |||||
| NI | WPW10225950 | Accessories, Kit, Backsplash (30" With Solid Shelf) (Replaces: W10225950) |
|
$ 1,611.24 | |||||
| NI | W10225949 | Accessories, Kit, Backsplash (36" With Solid Shelf) |
|
$ 1,836.82 | |||||
| NI | W10225948 | Accessories, Kit, Backsplash (48" With Solid Shelf) |
|
- | |||||
| NI | W10352734 | Accessories, Kit, Backsplash (30" Without Shelf) |
|
$ 499.67 |
