View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

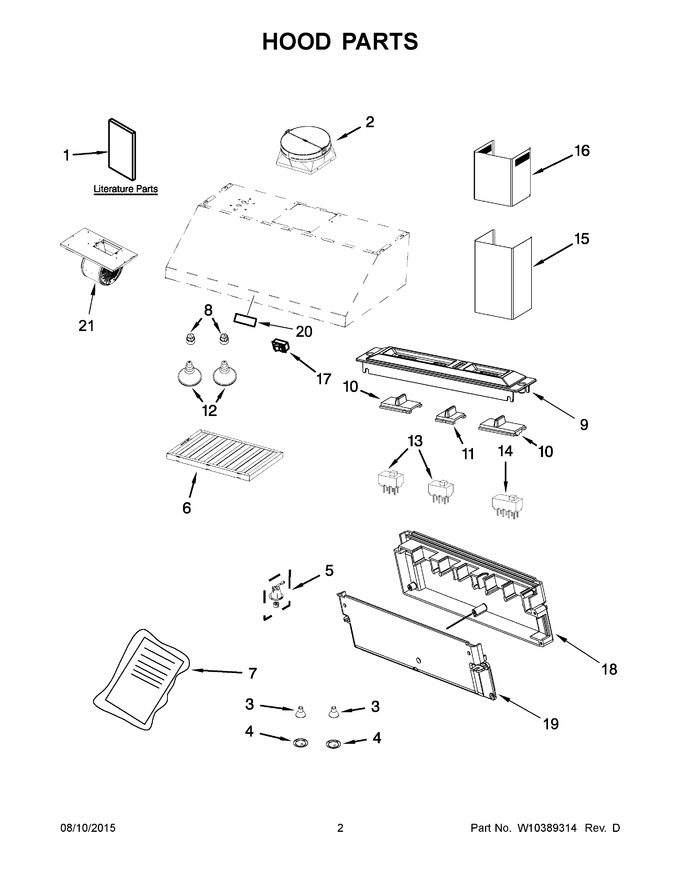

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10331009 | Use & Care Guide |
|
- | |||||
| 2 | W11156393 | Assembly, Damper (Replaces: W10351926) |
|
$ 192.85 | |||||
| 3 | WPW10291579 | Bulb, Light (Replaces: W10291579) |
|
Immediately | $ 186.21 | ||||
| 4 | W10351924 | Bezel, Lamp |
|
$ 177.83 | |||||
| 5 | WPW10370558 | Socket, Light (Replaces: W10370558) |
|
$ 78.69 | |||||
| 6 | W10351890 | Filter, Grease |
|
$ 106.13 | |||||
| 7 | W11565654 | Hardware, Install (Replaces: W10351931) |
|
$ 211.17 | |||||
| 8 | W10294008 | Socket, Ir Lamp |
|
$ 75.92 | |||||
| 9 | W11387938 | Panel, Switch (Replaces: W10370649) |
|
Immediately | $ 150.76 | ||||
| 10 | W11569415 | Switch, Slide (Replaces: W10370625) |
|
Immediately | $ 27.28 | ||||
| 11 | W11662407 | Switch, Slider (Replaces: W10351911) |
|
Immediately | $ 38.09 | ||||
| 12 | WPW10294005 | Lamp, Ir (Replaces: W10294005) |
|
Immediately | $ 267.04 | ||||
| 13 | W10853393 | Switch, Rocker (motor) (Replaces: W10351916) |
|
Immediately | $ 207.34 | ||||
| 14 | W11193832 | Switch, Rocker (on/off) (Replaces: W10351915) |
|
$ 194.04 | |||||
| 15 | WPW10351932 | Cover, Lower Duct (Replaces: W10351932) |
|
$ 345.88 | |||||
| 16 | W11417439 | Cover, Upper Duct (Replaces: W10351933) |
|
$ 395.81 | |||||
| 17 | W10351934 | Switch, (on/off) |
|
$ 66.28 | |||||
| 18 | W10721964 | Housing, Switch |
|
$ 157.29 | |||||
| 19 | W10721963 | Cover, Switch Housing |
|
$ 118.12 | |||||
| 20 | WPW10243391 | Badge (grey) (Replaces: W10243391) |
|
$ 52.48 | |||||
| 21 | N/P | Motor, Blower (not Included, See Accessories) |
|
- | |||||
| NI | W11499036 | Accessories, 1200 Cfm Internal Blower Motor Backsplash (Replaces: W10294026) |
|
Immediately | $ 786.77 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10352733 | Accessories, Chimney Extension Kit |
|
$ 1,283.51 | |||||
| NI | W11636054 | Accessories, 600 Cfm Internal Blower Motor (Replaces: W10294006) |
|
Immediately | $ 744.83 | ||||
| NI | W10352735 | Accessories, 36" Without Shelf |
|
$ 655.15 | |||||
| NI | W10352736 | Accessories, 48" Without Shelf |
|
$ 621.74 | |||||
| NI | W10225949 | Accessories, 36" With Solid Shelf |
|
$ 1,836.82 | |||||
| NI | W10225948 | Accessories, 48" With Solid Shelf |
|
- | |||||
| NI | W10285448 | Accessories, 36" With Shelves |
|
Immediately | $ 417.54 | ||||
| NI | W10285449 | Accessories, 48" With Shelves |
|
$ 473.10 |
