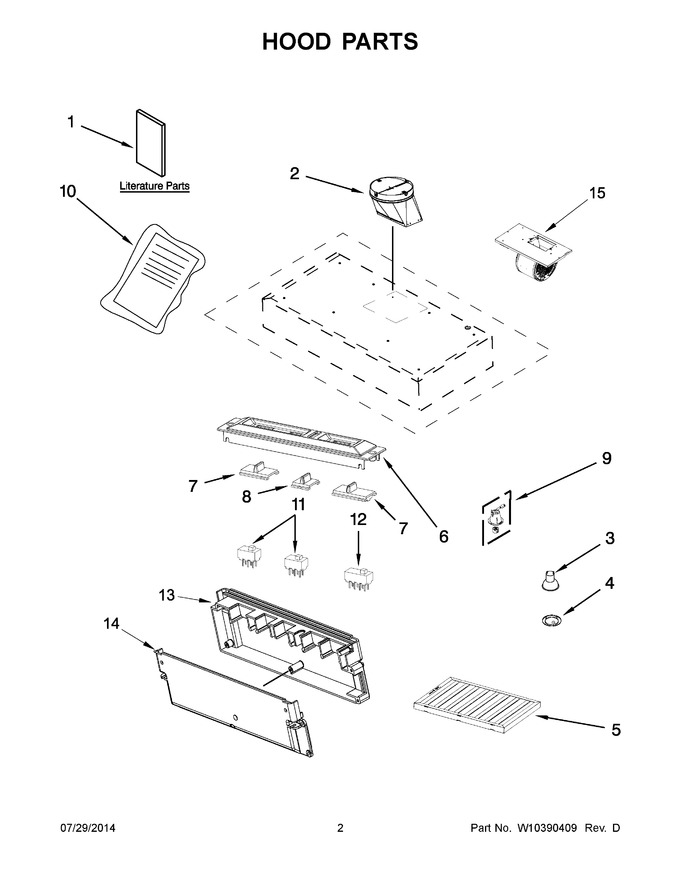

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10331011 | Use & Care Guide |
|
- | |||||
| 2 | W11156393 | Assembly, Damper (Replaces: W10351926) |
|
$ 192.85 | |||||
| 3 | WPW10291579 | Bulb, Light (Replaces: W10291579) |
|
Immediately | $ 186.21 | ||||
| 4 | W10351924 | Bezel, Lamp |
|
$ 177.83 | |||||
| 5 | W10169961A | Filter, Grease (Replaces: W10169961) |
|
Immediately | $ 37.65 | ||||
| 6 | W11387938 | Panel, Switch (Replaces: W10370649) |
|
Immediately | $ 150.76 | ||||
| 7 | W11569415 | Switch, Slide (Replaces: W10370625) |
|
Immediately | $ 27.28 | ||||
| 8 | W11662407 | Switch, Slider (Replaces: W10351911) |
|
Immediately | $ 38.09 | ||||
| 9 | WPW10370558 | Socket, Light (Replaces: W10370558) |
|
$ 78.69 | |||||
| 10 | W11088595 | Hardware, Install (Replaces: W10351944) |
|
Immediately | $ 82.13 | ||||
| 11 | W10853393 | Switch, Rocker (motor) (Replaces: W10351916) |
|
Immediately | $ 207.34 | ||||
| 12 | W11193832 | Switch, Rocker (on/off) (Replaces: W10351915) |
|
$ 194.04 | |||||
| 13 | W10721964 | Housing, Switch |
|
$ 157.29 | |||||
| 14 | W10721963 | Cover, Switch Housing |
|
$ 118.12 | |||||
| 15 | N/P | Motor, Blower (not Included, See Accessories) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10351855A | Accessories, Filter, Grease (Replaces: W10351855) |
|
$ 188.92 | |||||
| NI | W11636054 | Accessories, 600 Cfm Internal Blower Motor (Replaces: W10294006) |
|
Immediately | $ 744.83 | ||||
| NI | W11499036 | Accessories, 1200 Cfm Internal Blower Motor (Replaces: W10294026) |
|
Immediately | $ 786.77 |
