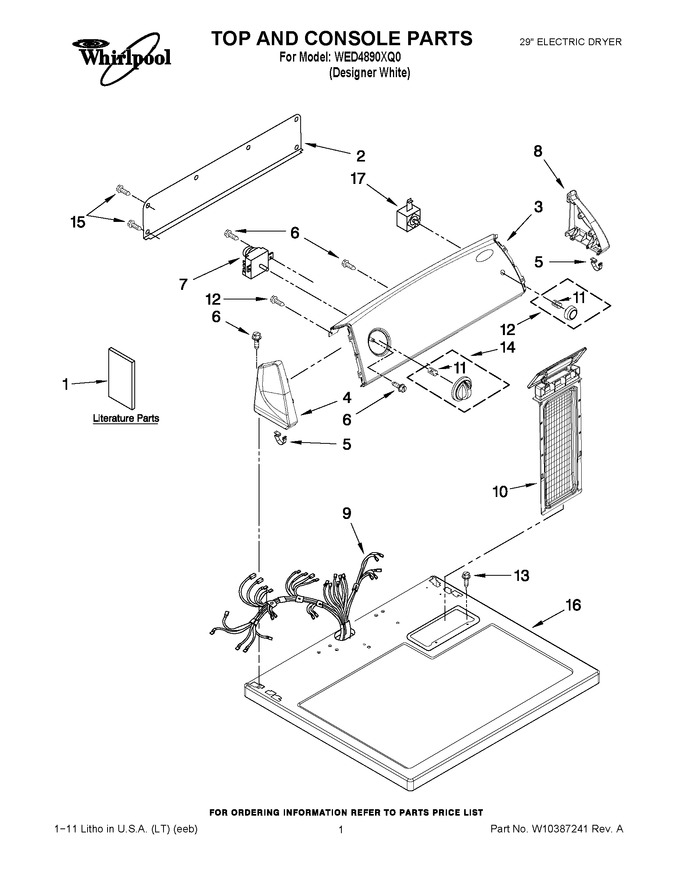

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096986		Use & Care Guide		Appelez-nous	-
1	W10096987		Installation Instructions		Appelez-nous	-
1	W10185978		Wiring Diagram		Appelez-nous	-
2	W10103406		Panel, Rear Console				$ 121.78
3	W10115487		Panel, Console & Control Bracket Assembly		Appelez-nous	-
4	WP8565957		Cap, End (l.h.)   (Replaces: 8566035)				$ 58.28
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	WP90767		Screw, Console   (Replaces: 3348629)			Immediately	$ 7.43
7	WPW10185976		Timer, 60 Hz.   (Replaces: W10185976)			Immediately	$ 164.52
8	WP8565954		Cap, End (r.h.)   (Replaces: 8566032)				$ 59.26
9	W10186166		Harness, Wiring		Appelez-nous	-
10	W10874409		Screen, Lint   (Replaces: 8557861)			Immediately	$ 60.31
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	W10034770		Knob, Push-to-start		Appelez-nous	-
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	W10034750		Knob, Timer Assembly				$ 28.27
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
16	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 314.33
17	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 23.99
