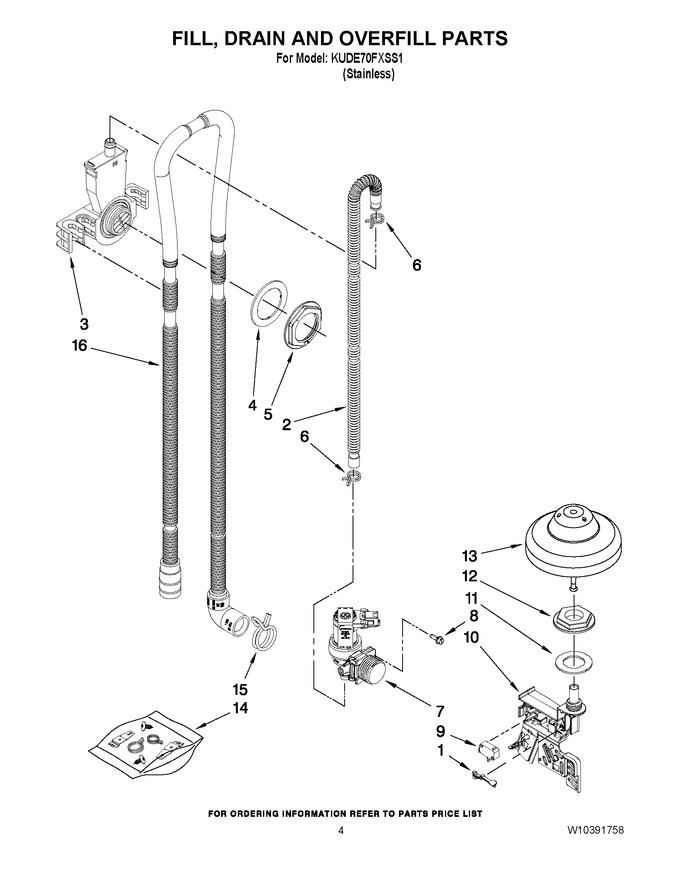

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10195037 | Lever, Overfill Switch (Replaces: W10195037) |
|
Immediately | $ 10.57 | ||||
| 2 | W10878507 | Hose, Inlet (Replaces: 8531412) |
|
Immediately | $ 73.43 | ||||
| 3 | WPW10195536 | Water Inlet (also Order Items 4) (Replaces: W10195536) |
|
Immediately | $ 84.88 | ||||
| 4 | WP8531323 | Gasket (Replaces: 8531323) |
|
Immediately | $ 36.96 | ||||
| 5 | WPW10213825 | Nut, Inlet (also Order Item 4) (Replaces: W10213826) |
|
$ 7.55 | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 7.94 | ||||
| 7 | W11175771 | Fill Valve Assembly (Replaces: W10195047) |
|
Immediately | $ 66.32 | ||||
| 8 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 9 | WPW10195039 | Switch, Overfill Control (Replaces: W10195039) |
|
Immediately | $ 69.68 | ||||
| 10 | W10873429 | Standpipe, Overfill (also Order No.11) (Replaces: W10195035) |
|
Immediately | $ 21.78 | ||||
| 11 | WP8531743 | Gasket, Flat (Replaces: 8531743) |
|
Immediately | $ 43.57 | ||||
| 12 | WPW10195038 | Nut, Standpipe (Replaces: W10195038) |
|
Immediately | $ 7.58 | ||||
| 13 | WPW10195036 | Float & Retainer Assembly (Replaces: W10195036) |
|
Immediately | $ 79.54 | ||||
| 14 | WPW10292152 | Miscellaneous Parts Bag (contains 2 Hose Clamps, Screws & 2 Under Counter Brackets) (Replaces: W10292152) |
|
Immediately | $ 53.34 | ||||
| 15 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 16 | WPW10195751 | Drain Loop With Check Valve Assembly (Replaces: W10195751) |
|
Immediately | $ 126.26 |
