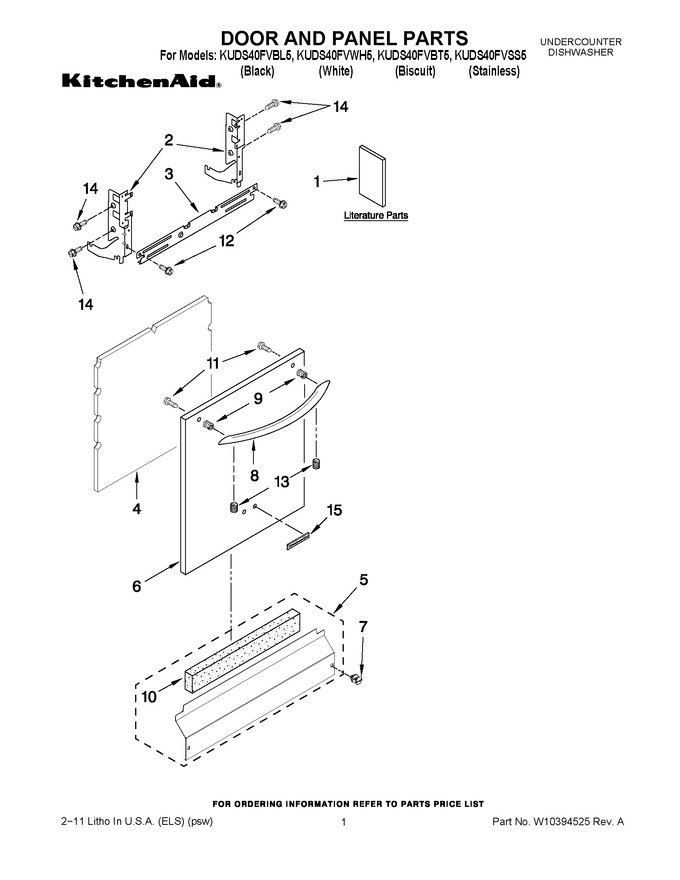

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10142800 | Tech Sheet |
|
- | |||||
| 1 | W10275503 | Instructions, Installation |
|
- | |||||
| 1 | W10311170 | Energy Guide |
|
- | |||||
| 1 | W10300234 | Guide, Use & Care (spanish) |
|
- | |||||
| 1 | W10300233 | Guide, Use & Care (english/french) |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 5 | W10369031 | Access Panel (biscuit) |
|
- | |||||
| 5 | WPW10526114 | Access Panel (black) (Replaces: W10369029) |
|
Immediately | $ 181.97 | ||||
| 5 | WPW10526115 | Access Panel (white) (Replaces: W10369030) |
|
$ 175.17 | |||||
| 6 | W10078008 | Biscuit Panel, Full Front (includes Items 4, 9 & 15) (white) |
|
$ 166.18 | |||||
| 6 | W10078009 | Biscuit Panel, Full Front (includes Items 4, 9 & 15) (biscuit) |
|
- | |||||
| 6 | W10137623 | Biscuit Panel, Full Front (includes Items 4, 9 & 15) (stainless) |
|
$ 242.05 | |||||
| 6 | W10078007 | Biscuit Panel, Full Front (includes Items 4, 9 & 15) (black) |
|
$ 175.19 | |||||
| 7 | WPW10503550 | Fastener (biscuit) (Replaces: W10331794) |
|
Immediately | $ 29.00 | ||||
| 7 | WPW10503549 | Fastener (white) (Replaces: W10331793) |
|
Immediately | $ 7.77 | ||||
| 7 | WPW10503548 | Fastener (black) (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 8 | W10257146 | Handle (includes Items 13) (black) |
|
$ 42.06 | |||||
| 8 | W10257145 | Handle (includes Items 13) (stainless) |
|
$ 55.36 | |||||
| 8 | W10257148 | Handle (includes Items 13) (biscuit) |
|
- | |||||
| 8 | W10257147 | Handle (includes Items 13) (white) |
|
$ 42.68 | |||||
| 9 | WP8564951 | Stud, Mounting (Replaces: 8564951) |
|
Immediately | $ 19.33 | ||||
| 10 | W10831329 | Insulation, Access Panel (Replaces: 8268581) |
|
Immediately | $ 43.30 | ||||
| 11 | W10123421 | Screw |
|
$ 12.83 | |||||
| 12 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 13 | WP8534008 | Screw (Replaces: 8534008) |
|
$ 9.37 | |||||
| 14 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 15 | WPW10243391 | Nameplate (stainless) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 15 | WPW10243392 | Nameplate (black) (Replaces: W10243392) |
|
$ 73.70 | |||||
| 15 | WPW10243393 | Nameplate (white) (Replaces: W10243393) |
|
$ 69.98 | |||||
| 15 | W10243394 | Nameplate (biscuit) |
|
- |
