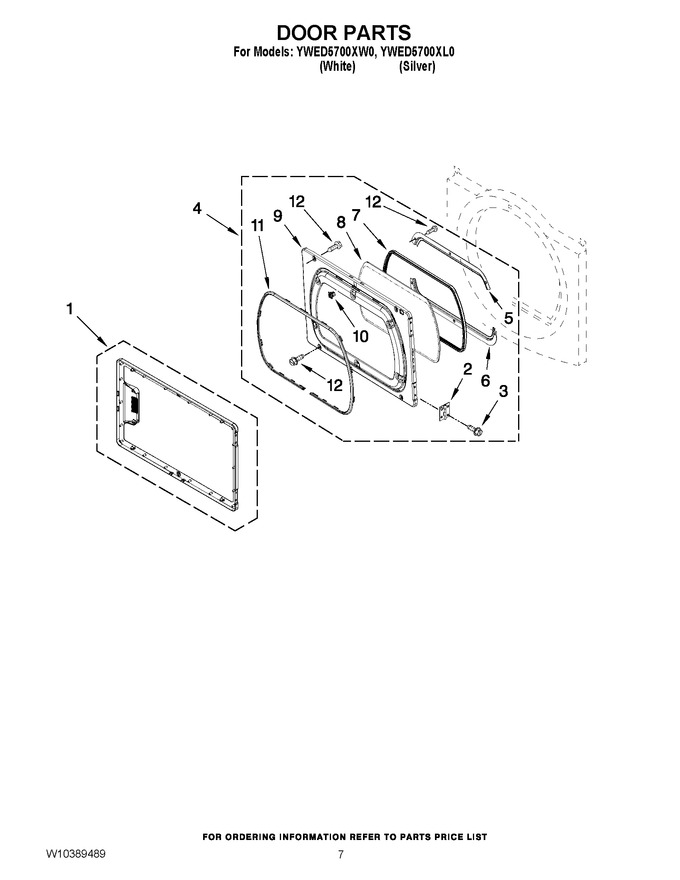

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10284127 | Outer Door Assembly (white) (Replaces: W10284127) |
|
$ 200.12 | |||||
| 1 | W10284145 | Outer Door Assembly (silver) |
|
- | |||||
| 2 | W10330876 | Hinge & Pin Assembly (silver) |
|
$ 17.14 | |||||
| 2 | W11175815 | Hinge & Pin Assembly (white) (Replaces: W10330875) |
|
$ 76.93 | |||||
| 3 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 7.30 | |||||
| 4 | W10284131 | Inner Door Assembly |
|
$ 224.06 | |||||
| 5 | W10284119 | Retainer, Glass Upper |
|
- | |||||
| 6 | W10284120 | Retainer, Glass Lower |
|
- | |||||
| 7 | W11676508 | Seal, Window (Replaces: W10284122) |
|
$ 25.53 | |||||
| 8 | WPW10284121 | Door, Glass (Replaces: W10284121) |
|
$ 237.25 | |||||
| 9 | W11652037 | Door Inner (Replaces: W10284132) |
|
$ 188.01 | |||||
| 10 | 279570 | Door Catch Assembly (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 11 | WPW10354795 | Seal-door (Replaces: W10354795) |
|
$ 117.11 | |||||
| 12 | WP3373329 | Screw, 10-16 X 1/2 (Replaces: 3393258) |
|
$ 7.67 |
