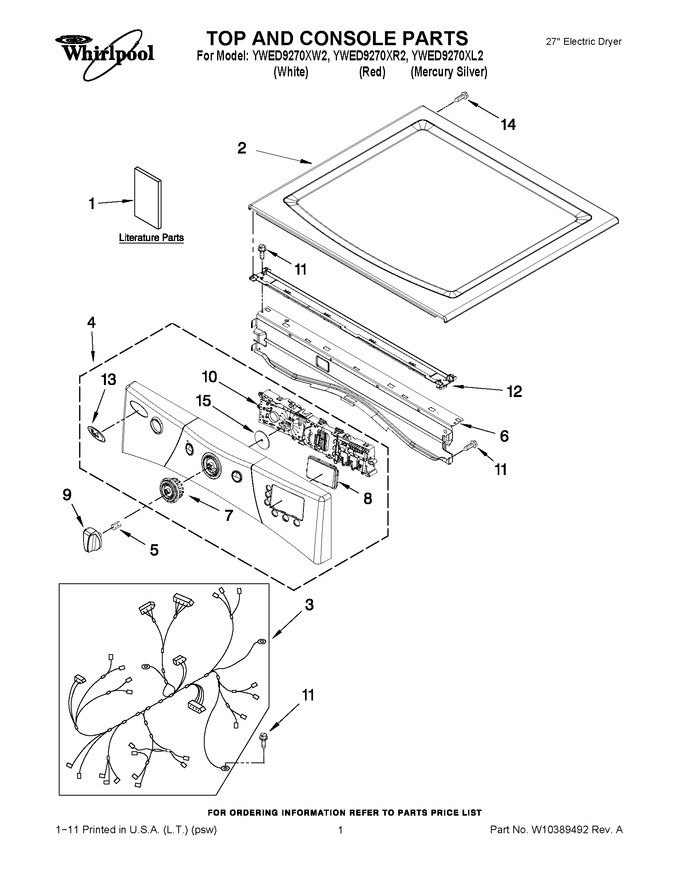

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10293937		Use & Care Guide		Appelez-nous	-
1	W10340328		Tech Sheet		Appelez-nous	-
1	W10240584		Installation, Instruction		Appelez-nous	-
2	WPW10336091		Top (mercury)   (Replaces: W10336091)				$ 292.44
2	WPW10336080		Top (white)   (Replaces: W10336080)				$ 298.79
2	W10336090		Top (red)				$ 121.81
3	W10278760		Harness, Main				$ 94.15
4	WPW10215463		Panel, Console (include Items, 7,8,10,13 & 15 ) (red)   (Replaces: W10329852)				$ 322.97
4	W10329851		Panel, Console (include Items, 7,8,10,13 & 15 ) (mercury)		Appelez-nous	-
4	W10329850		Panel, Console (include Items, 7,8,10,13 & 15 ) (white)		Appelez-nous	-
5	W10153920		Spring, Knob		Appelez-nous	-
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 170.79
7	W10237301		Cycle, Light Guide		Appelez-nous	-
8	W10212742		Window, Led Display				$ 22.30
9	WPW10247262		Assembly, Knob (for Red & Silver Models)   (Replaces: W10247262)				$ 50.72
9	WPW10215781		Assembly, Knob (white)   (Replaces: W10215781)				$ 53.21
10	W10215476		Assembly, User Interface		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
12	WPW10266747		Chanel, Water   (Replaces: W10266747)				$ 66.56
13	W10117943		Badge Assembly		Appelez-nous	-
14	3400238		Screw, 2-28 X 1/2				$ 12.03
15	8572039		Seal, User Interface		Appelez-nous	-
