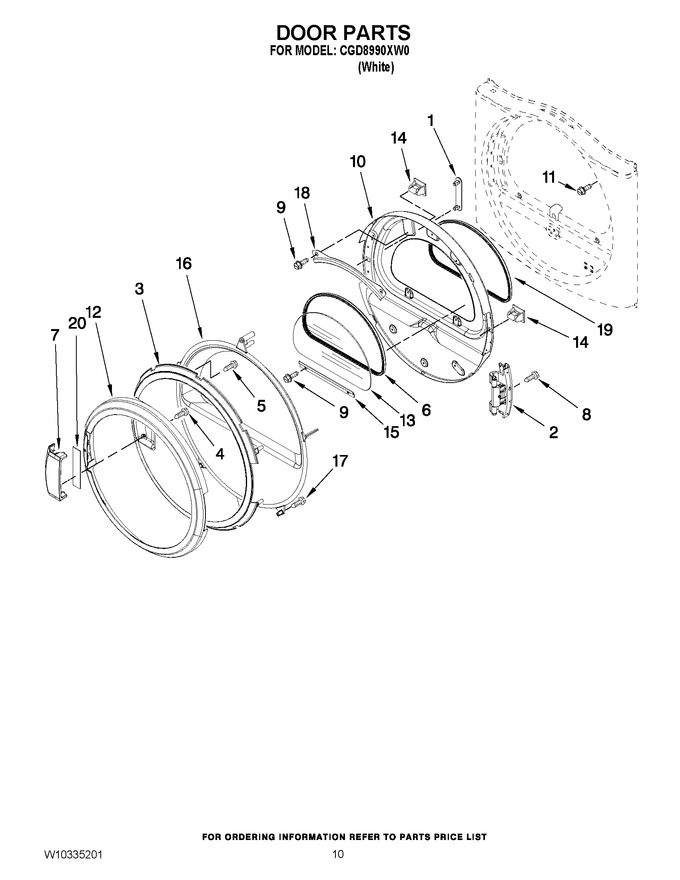

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8565119		Label, Hinge Hole Cover (inner Door)				$ 88.49
2	W11628813		Door Hinge Assembly   (Replaces: W10198424)				$ 153.13
3	W10137473		Door Screen Intermediate Assy. (rotational)		Appelez-nous	-
4	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 6.80
5	3400618		Screw				$ 61.15
6	W11706993		Seal, Window   (Replaces: 8579663)				$ 25.40
7	W10850397		Handle, Door (include Item, 20 )   (Replaces: W10117477)				$ 32.85
8	WPW10159996		Screw,   (Replaces: W10159996)				$ 7.67
9	WP3373329		Screw   (Replaces: 3393258)				$ 7.67
10	W11690171		Door Assembly (inner) (include Items, 1 & 14 )   (Replaces: W10363674)				$ 184.04
11	WP355515		Screw   (Replaces: 355515)				$ 7.63
12	W11721374		Door, Outer Ring   (Replaces: W10198431)				$ 92.33
13	WPW10286878		Window   (Replaces: W10286878)				$ 247.28
14	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.00
15	W10822054		Retainer-lower   (Replaces: 8519354)			Immediately	$ 16.21
16	W10137471		Door, Intermediate (stationary)		Appelez-nous	-
17	WP8534022		Screw   (Replaces: 8534022)				$ 7.53
18	8519356		Retainer, Upper		Appelez-nous	-
19	N/P		Door Seal (not Serviceable)		Appelez-nous	-
20	WPW10112927		Pad, Door Handle   (Replaces: W10112927)				$ 7.48
