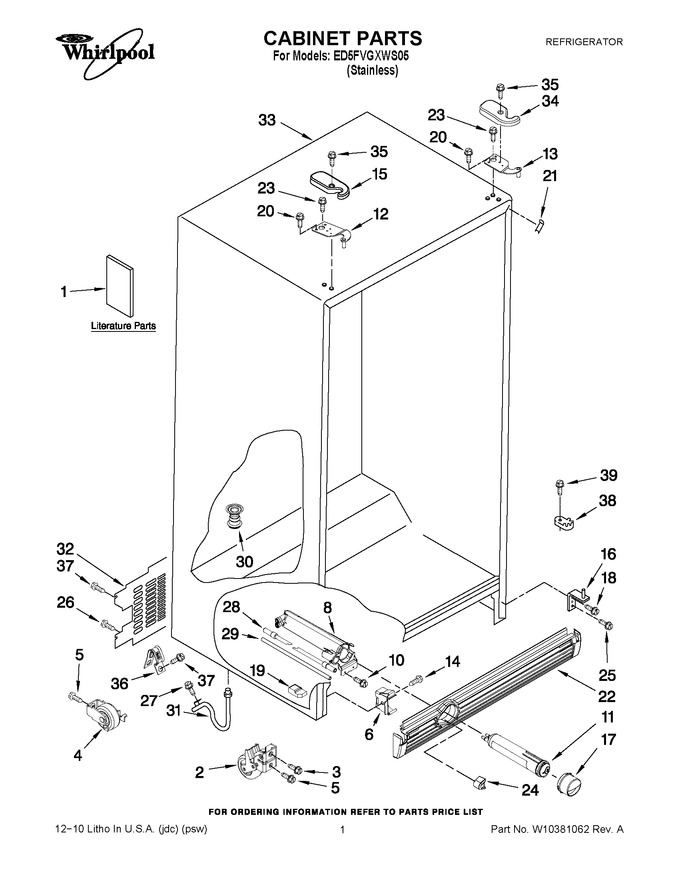

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10296167		Energy Label		Appelez-nous	-
1	628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	2216001		Instruction Sheet, Door Removal		Appelez-nous	-
1	W10213155		Use & Care Guide		Appelez-nous	-
1	W10207987		Service & Wiring Sheet		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 12.98
4	WPW10250570		Roller (rear) (2)   (Replaces: W10250570)				$ 37.96
5	WP489427		Screw   (Replaces: 489427)				$ 7.06
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.30
8	WPW10121138		Housing, Water Filter   (Replaces: W10121138)			Immediately	$ 103.15
10	WP489500		Screw (2)   (Replaces: 489500)				$ 7.35
11	EDR3RXD1B		Water Filter   (Replaces: 4396841)			Immediately	$ 49.99
12	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 90.27
13	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 92.82
14	WP489128		Screw   (Replaces: 488500)				$ 10.26
15	WP2203407B		Hinge Cover   (Replaces: 2203407B)				$ 18.45
16	W10138965		Hinge Bottom (2)				$ 84.52
17	WP2260518B		Cap, Water Filter   (Replaces: 2260502B)			Immediately	$ 30.56
18	WP489497		Screw (4)   (Replaces: 3400113)			Immediately	$ 26.18
19	2260519		Block, Housing Support		Appelez-nous	-
20	3400858		Screw		Appelez-nous	-
21	2304848		Filler, Wrapper		Appelez-nous	-
22	WPW10311033		Grille   (Replaces: W10283949)				$ 166.42
23	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
24	WP2260503B		Button, Water Filter   (Replaces: 2260503B)				$ 68.78
25	W10856122		Screw (2)   (Replaces: 3400103)				$ 7.44
26	WP488488		Screw   (Replaces: 489290)				$ 7.67
27	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
28	W10212512		Tube, Filter Inlet		Appelez-nous	-
29	WPW10350006		Tube, Filter Outlet   (Replaces: 2255012)				$ 109.19
30	W11566763		Drain Fitting   (Replaces: 2304888)			Immediately	$ 48.11
31	W11512417		Extension Tube   (Replaces: W10153550)				$ 32.88
32	WP2188755		Cover, Unit   (Replaces: 2188735)				$ 128.44
33	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
34	WP2203408B		Hinge Cover   (Replaces: 2203408B)				$ 17.60
35	WP8281227		Screw   (Replaces: 8281227)				$ 9.86
36	549193		Clamp, Service Cord				$ 12.65
37	WPW10141645		Screw   (Replaces: 489084)				$ 7.25
38	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.31
39	WP489483		Screw (2)   (Replaces: 489483)				$ 10.27
