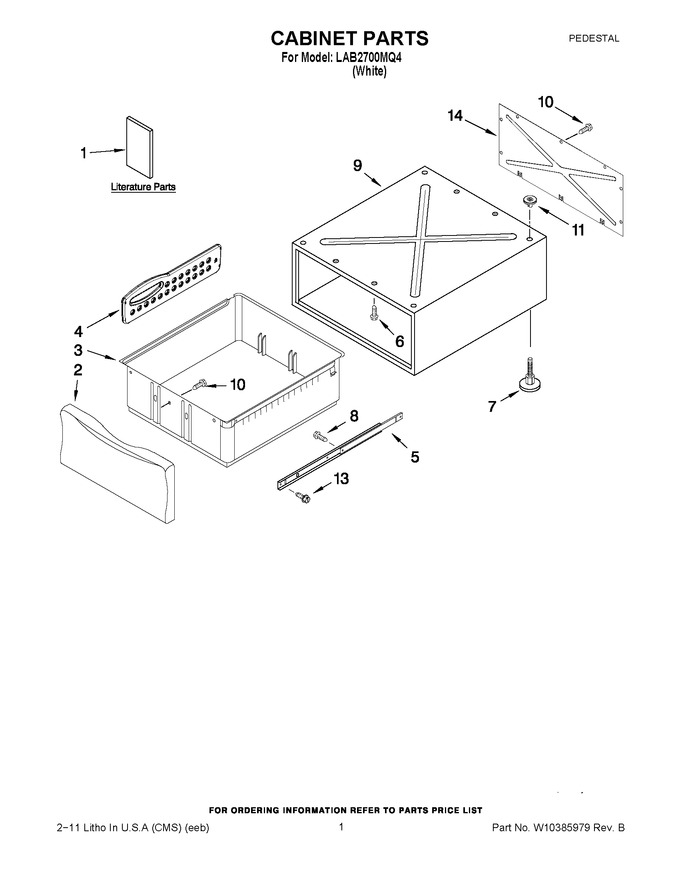

01 - Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8578376		Installation Instructions		Appelez-nous	-
2	8538014		Drawer Front Assembly (white)				$ 183.07
3	8537883		Drawer Bin				$ 113.24
4	8565576		Divider, Drawer (set Of 2)		Appelez-nous	-
5	WP8578394		Slide Assembly   (Replaces: 8578394)				$ 92.76
6	WPW10346892		Screw   (Replaces: 3400111)			Immediately	$ 6.80
7	WP8563585		Foot Assembly   (Replaces: 8563585)			Immediately	$ 13.95
8	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3388228)				$ 6.57
9	N/P		Cabinet (not Serviced)		Appelez-nous	-
10	WPW10213953		Screw, 8-18 X 1/2   (Replaces: W10213953)			Immediately	$ 6.80
11	WP8537982		Pad (4)   (Replaces: 8537982)			Immediately	$ 8.21
13	WP9740849		Screw   (Replaces: 9740849)				$ 6.57
14	8537849		Rear Panel		Appelez-nous	-
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	72017		Paint, Touch-up (1/2oz.) (white)			Immediately	$ 11.07
NI	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 24.99
NI	80051		Paint, Touch-up (1/2oz.) (graphite)				$ 7.64
NI	WP4396174		Paint, Touch-up (1/2oz.) (pewter)   (Replaces: 4396174)				$ 26.65
NI	W10202939		Paint, Touch-up (1/2oz.) (meteorite)   (Replaces: 4396603)				$ 23.61
NI	350930		Paint, Pressurized Spray (12 Oz.) (white)			Immediately	$ 36.11
NI	8171357		Paint, Pressurized Spray (12 Oz.) (graphite)				$ 77.79
NI	4396175		Paint, Pressurized Spray (12 Oz.) (pewter)		Appelez-nous	-
NI	4392901		Paint, Pressurized Spray (12 Oz.) (biscuit)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
